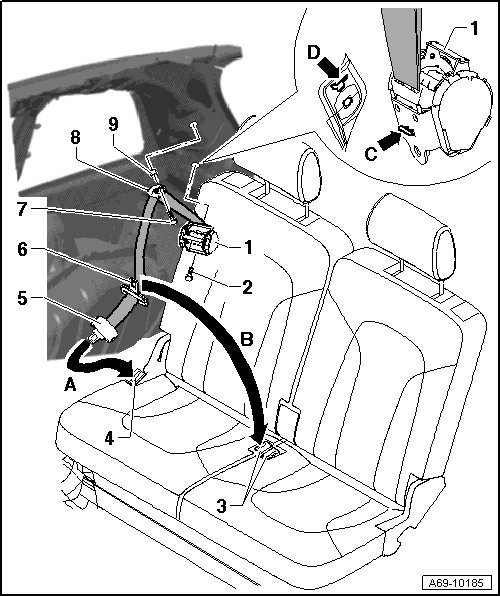

3rd Row Seat Belt Assembly Overview

3rd Row Seat Belt Assembly Overview






1 Belt roller

• Engage hooks - arrow C - in body cut-out - arrow D -

• Removing and Installing, refer to => [ 3rd Row Seat Belt ] 3rd Row Seat Belt

2 Bolt

• 55 Nm

• If seat belt is being removed for accident repairs, replace screw

3 3rd row center seat belt latch

• Double latch

• Removing and Installing, refer to => [ 3rd Center Row Seat Belt Latch Securing Point ] 3rd Center Row Seat Belt Latch Securing Point

• Always replace the seat belt latch if the belt tensioner has deployed with the belt on

4 3rd row outer seat belt latch

• Removing and Installing, refer to => [ 3rd Outer Row Seat Belt Latch Securing Point ] 3rd Outer Row Seat Belt Latch Securing Point

• Always replace the seat belt latch if the belt tensioner has deployed with the belt on

5 Locking tongue

• Is inserted in 3rd row outer seat belt latch - arrow A -

6 Locking tongue

• Is inserted in 3rd row center seat belt latch - arrow B -

7 Bolt

• 55 Nm

• If belt relay is being removed for accident repairs, replace screw

• Belt relay must swing by itself in carrier direction after tightening screw.

8 Belt relay

• Belt relay must swing by itself in carrier direction after tightening screw.

9 Spacer ring

• Is installed between belt relay and body
