3rd Outer Row Seat Belt Latch Securing Point

3rd Outer Row Seat Belt Latch Securing Point

Removing

- Remove the 3rd row bench seat. Refer to => [ 3rd Seat Row Assembly Overview ] 3rd Seat Row Assembly Overview.

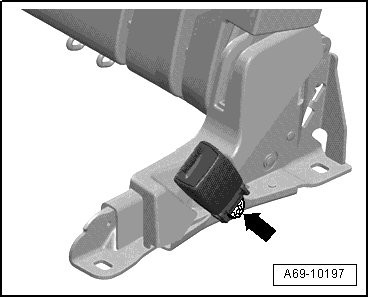

- Remove the screw - 1 - and remove the seat belt latch.






Installation

Install in reverse order of removal. Note the following:

• Screw - arrow - tightening specification: 55 Nm.
