3rd Center Row Seat Belt Latch Securing Point

3rd Center Row Seat Belt Latch Securing Point

Removing

- Remove the 3rd row bench seat. Refer to => [ 3rd Seat Row Assembly Overview ] 3rd Seat Row Assembly Overview.

- Remove cargo tray and spare wheel.

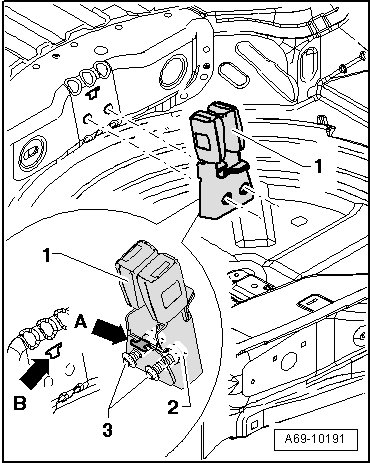

- Remove the screws - 1 - and the seat belt latch - 2 -.






• Screws - 2 - are secured against falling out with locking washers - 3 -.

Installation

Install in reverse order of removal. Note the following:

- Engage hook - arrow A - from seat belt latch in cut-out - arrow B - in body.






Tightening Specifications
