Steering Column Electronics Control Module (J527)

Steering Column Electronics Control Module (J527)

- If the control module was replaced, select the "Replace" function for the respective control module in "Guided Fault Finding" or "Guided Functions" of the Vehicle Diagnosis, Testing & Information System (VAS5051B).

Removing






- Remove the steering column switch module. Refer to => [ Steering Column Switch Module ] Steering Column Switch Module.

• Steering must be in center position (wheels in straight ahead position) when removing and installing coil connector with slip ring.

- Carefully release catches - arrows -.

- Remove airbag spring/spiral spring with slip ring - 2 - with Steering Angle Sensor (G85) - item 1 - from steering column switch module.

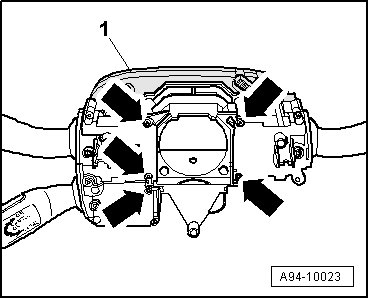

- Remove screws - arrows - and remove steering column electronics control module - item 1 - from steering column switch module.






Installing

Install in reverse order of removal, observing the following:

- Make sure all fasteners and electrical connectors are properly engaged.

- Install the steering column switch module. Refer to => Steering Column Switch Module.

Code the steering column electronics control module with the Vehicle Diagnosis, Testing & Information System (VAS5051B) if it was replaced.

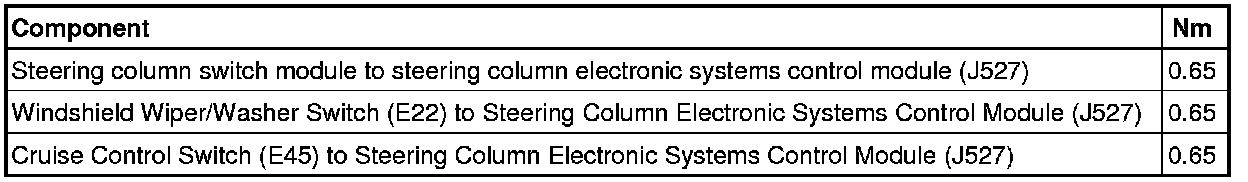

Tightening Specifications
