Cruise Control Switch (E45)

Cruise Control Switch (E45)

Removing






- Remove the steering column switch module. Refer to => [ Steering Column Switch Module ] Steering Column Switch Module.

• Steering must be in center position (wheels in straight ahead position) when removing and installing coil connector with slip ring.

- Carefully release catches - arrows -.

- Remove airbag spring/spiral spring with slip ring - 2 - with Steering Angle Sensor (G85) - item 1 - from steering column switch module.

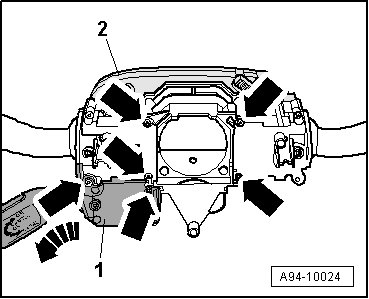

- Remove screws - arrows - and remove Steering Column Electronic Systems Control Module (J527) - item 2 - from steering column switch module.






- Disengage Cruise Control Switch (E45) - item 1 - from steering column switch module (SCSM).

Installing

Install in reverse order of removal, observing the following:

- Make sure all fasteners and electrical connectors are properly engaged.

- Install the steering column switch module. Refer to => Steering Column Switch Module.

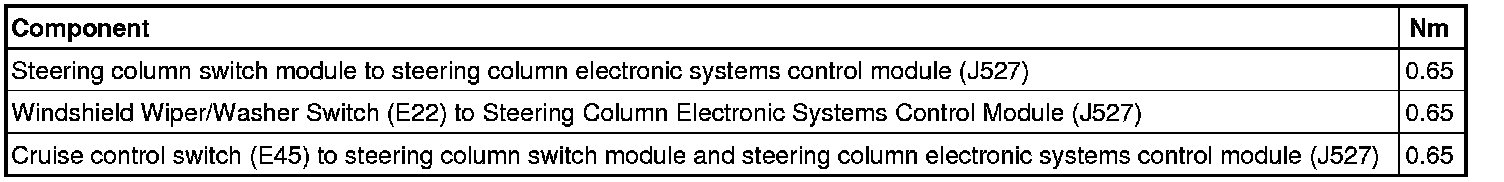

Tightening Specifications
