Instrument Panel Control Module: Locations







Control Modules

Instrument Cluster Control Module -J285-

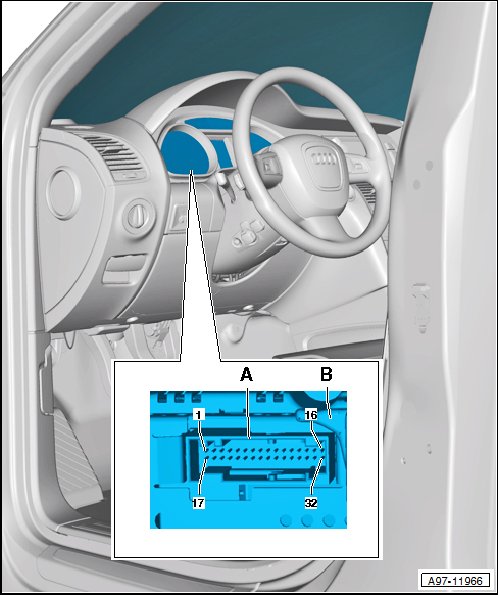

Component Location:
In driver's instrument panel.





A - 32-Pin Connector -T32a- , green

B - Instrument Cluster Control Module -J285-
