Climatronic Control Module -J255- , A/C Basic







Control Modules

Climatronic Control Module -J255- , A/C Basic


Component Location:





In upper center console -A-





A - Not used

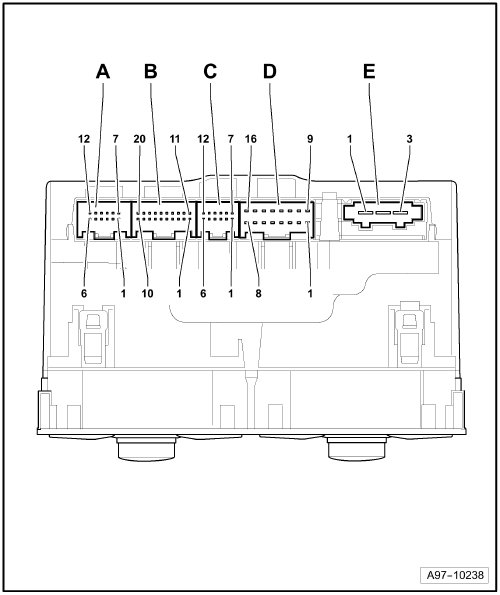

B - 20-Pin Connector -T20i- , red

C - Not used

D - 16-Pin Connector -T16d- , black

E - 3-Pin Connector -T3c- , black
