Directional Stabilization Assistance Control Module -J759-







Control Modules

Directional Stabilization Assistance Control Module -J759-

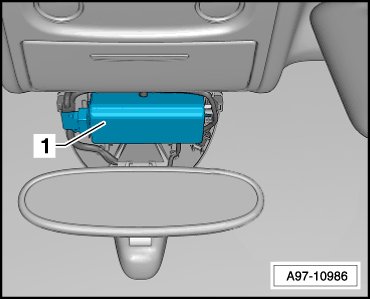

Component Location:
Behind interior mirror -1-.

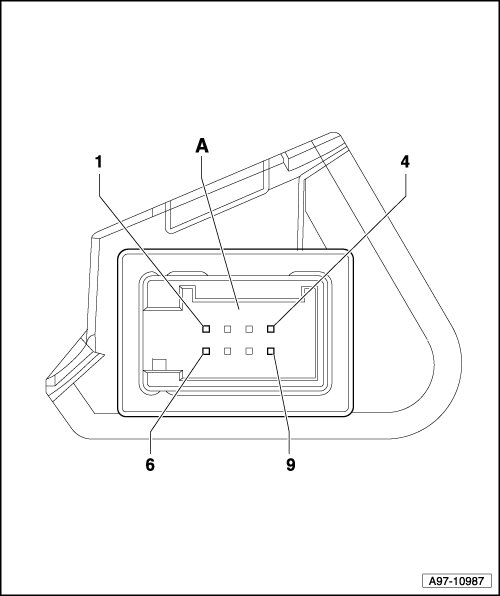

9-Pin Connector -T9- :





A - 9-Pin Connector -T9-

1 - Terminal 15

2 - Terminal 31

3 - Not used

4 - CAN-Bus Low to Data Bus On Board Diagnostic Interface -J533-

5 - Not used

6 - Directional Stabilization Assistance Windshield Heater -Z67-

7 - Not used

8 - Not used

9 - CAN-Bus High to Data Bus On Board Diagnostic Interface -J533-
