NOx Sensor 2 (G687)

NOx Sensor 2 (G687)

Removing

- Remove NOx sensor 2 - 1 -.

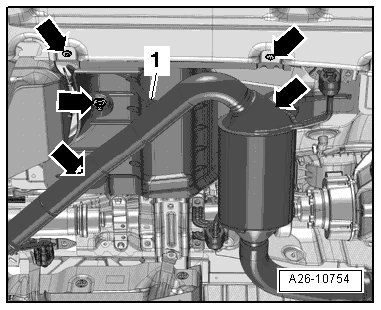

- Loosen the mounting elements - arrows - and move the heat shield to the left.

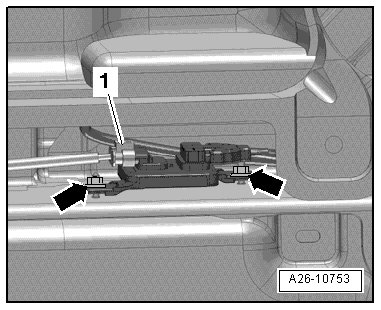

- Disconnect the connector - 1 -.






- Remove the nuts - arrows - and remove the NOx sensor control module 2 (J881) and NOx sensor 2.

Installing

• For the correct tightening specifications, refer to => [ Oxygen Sensors and Exhaust Temperature Control Overview ] Oxygen Sensors and Exhaust Temperature Control Overview.

Install in reverse order, paying attention to the following:

- Install the floor panel trim and heat shield.
