Special Tools

Special Tools

Special tools, testers and auxiliary items required

• Pry Lever - Rmv Outside Mirror (80-200)

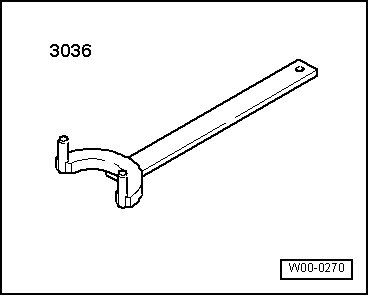

• Retainer (3036)






• Crankshaft Holder (3242)






• Ring Spanner 7-Piece Set (3337)

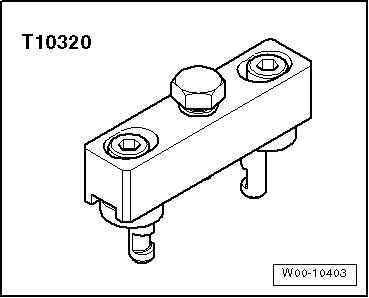

• Puller (T10320)






• Socket (T40058)






• Socket (T40055)

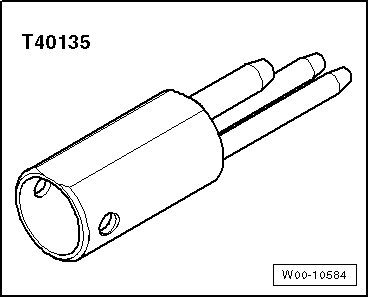

• Locking Tool (T40135) for adjusting the high pressure pump.






• Torque Wrench 5-50 Nm (V.A.G 1331)






• Ratchet, Reversible (V.A.G 1331/1)






• Tool Insert, AF 17 (V.A.G 1331/6)






• Adapter Cable (V.A.G 1598/39-1)

• Adapter Cable (V.A.G 1598/39-2)

• Test Box 105 Pin (V.A.G 1598/42)






• Hot Air Blower (VAS 1978/14A) - 1 - with nozzle attachment - 2 - from the Wiring Harness Repair Set (VAS 1978 B)

• Small commercially available locking pliers - 3 -






• Hand Vacuum Pump (VAS 6213)






• Tester for Fuel Return System (VAS 6330)






• Breakout Box (VAS 6606/1)

• Breakout Box (VAS 6606/2)

• Breakout Box (VAS 6606/3)

• Sheet for Breakout Box (VAS 6606/1-1)

• Sheet for Breakout Box (VAS 6606/2-1)

• Sheet for Breakout Box (VAS 6606/3-1)

• Cable Set (VAS 6606/7)






• Not illustrated:

• Hose Clamps Up to 25 mm Dia. (3094)

• Puller (T10055) with adapter (T10055/1)

• Puller (T10320)

• Socket (T40055)

• Puller (T40064)

• Locking Tool (T40135)

• Fuel Measuring Unit (V.A.G 1348/2 B)
