Suction Jet Pump Overview

Suction Jet Pump Overview

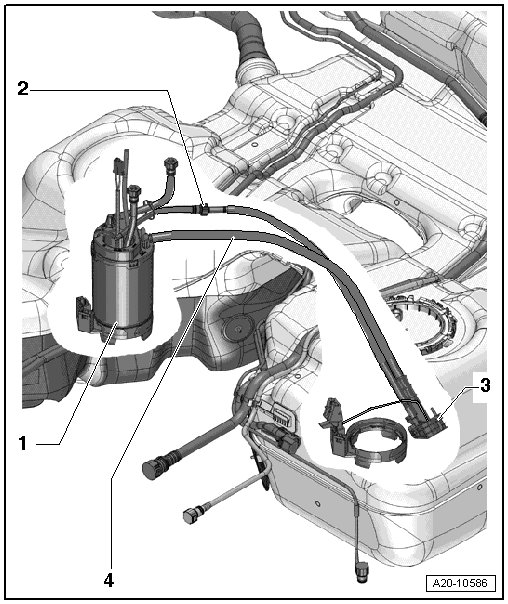

• Fuel tank is divided into a left and a right chamber. Use a suction jet pump - 3 - to move fuel from left fuel tank chamber to the right one for the fuel delivery unit baffle housing - 1 -.

• Function of the suction jet pump is based on a simple physical principle: An injector in the suction jet pump - 3 - compresses the suction jet of the electrical fuel pump's preliminary stage - 1 -, which accelerates the suction jet. This acceleration causes the surrounding fuel to be drawn in and be forced to the baffle housing of the fuel delivery unit.






1 Fuel Delivery Unit

• With transfer Fuel Pump (FP) (G6)

2 Suction Jet Pipe

• To disconnect, press release button on connection piece

3 Suction Jet Pump

4 Fuel Supply Line

• Clipped on the right fuel delivery unit
