Emissions - AdBlue(R) Residue On Exhaust Flange
26 White AdBlue Buildup Seen on Exhaust Mounting Flange - P20F4, P20F526 11 05
2027280/2
August 4, 2011

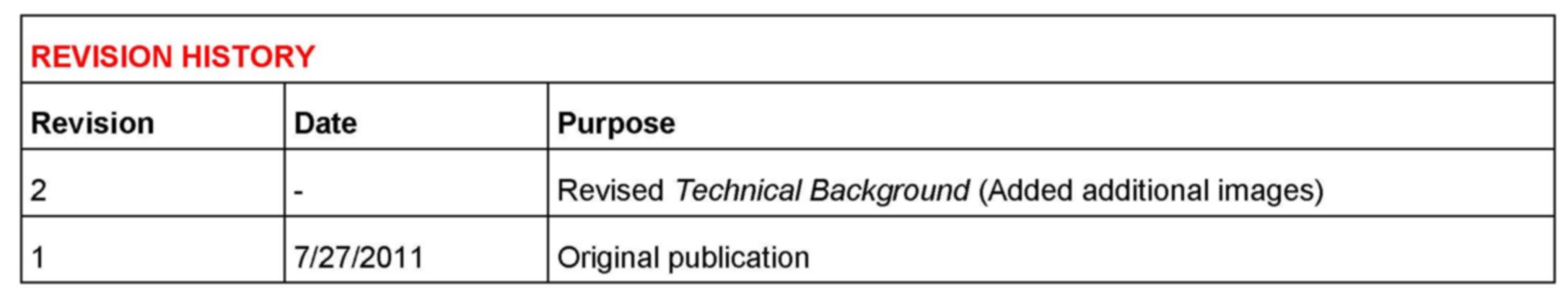

Supersedes Technical Service Bulletin Group 26 number 11 - 04 dated July 27, 2011 for reasons listed below.

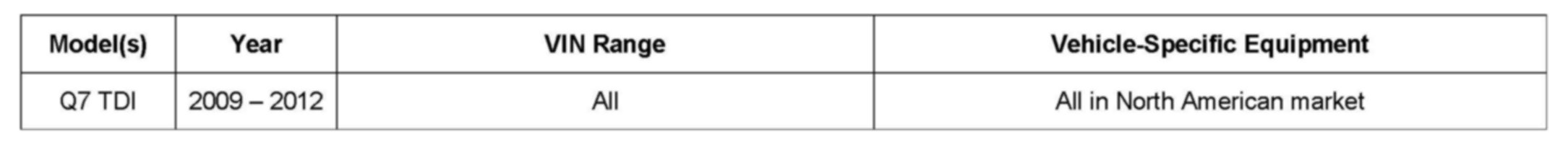

Affected Vehicles
Condition

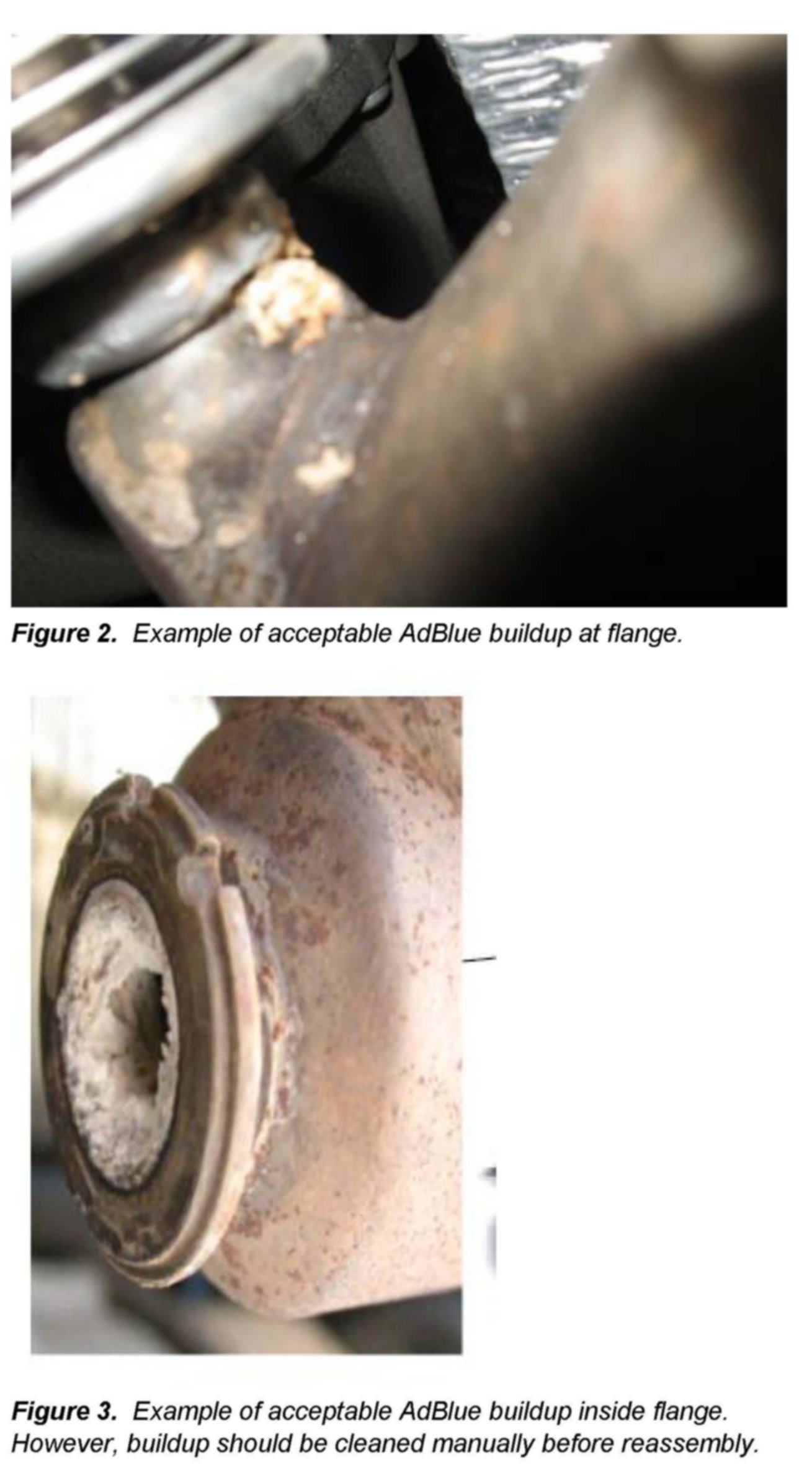

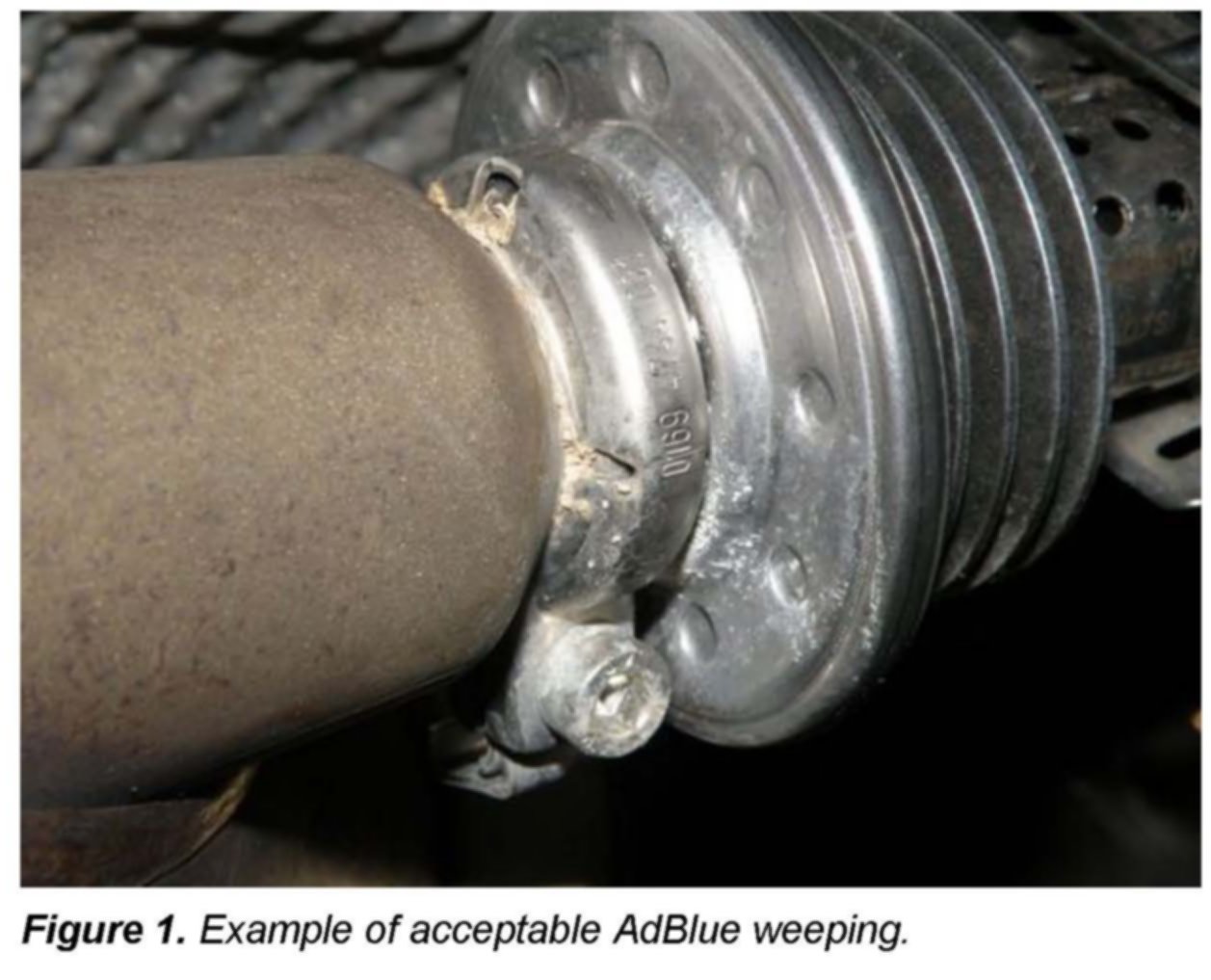

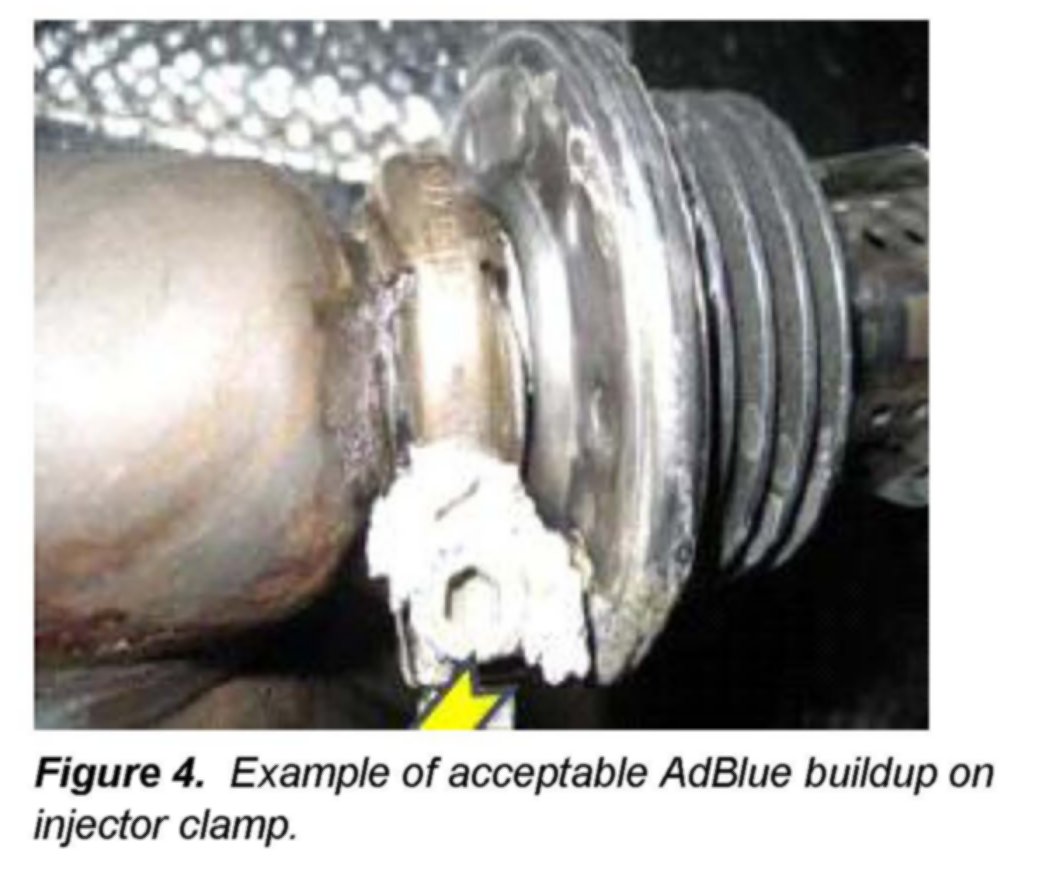

White dried/crystallized AdBlue residue is seen originating from the flange which the AdBlue injector is attached.
Technical Background
"Sweating" of the AdBlue from this connection is acceptable. Do not replace the AdBlue injector for this condition. Only replace the injector if a gross leak causes liquid AdBlue to leak off of the flange onto the ground. Crystallization of the AdBlue at this flange does not indicate a technical problem. The residue can be cleaned manually, but no removal of the dosing valve is required unless necessary to inspect for injector operation.
Production Solution
This TSB is for information only.
Service
This TSB is for information only.
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
