EGR Temperature Sensor, Checking

EGR Temperature Sensor, Checking

Observe all safety precautions: => [ Safety Precautions ] Generic Scan Tool

View clean working conditions: => [ Clean Working Conditions ] Clean Working Conditions

Perform a preliminary check to verify the condition: => [ Preliminary Check ] Preliminary Check.

Use only gold-plated terminals when servicing any component with gold-plated electrical harness connector terminals.

For wiring diagrams, component locations, and connector views, Refer to the applicable wiring diagram.

Special tools, testers and auxiliary items required

• Multimeter

• Electrical connector test lead set

Test conditions

• Battery voltage 12.5 V

• Fuse OK

• Engine MUST be at room temperature.

• Ignition switched off

Test procedure

- Engine MUST be at room temperature.

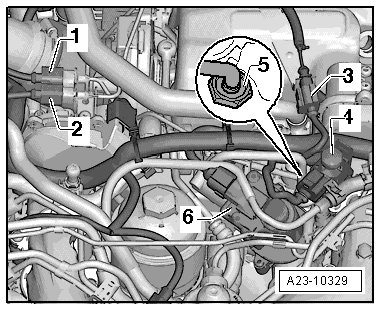

- Disconnect the EGR Temperature Sensor (G98) connector.- 1 -






- Using a multimeter, check the EGR Temperature Sensor (G98) terminals 1 to 2 for resistance.

Specified value: 230 ohms (+/- 60 ohms) at room temperature.

If the specified value was Not obtained:

- Replace the EGR Temperature Sensor (G98)

If the specified value was obtained:

- Turn the ignition switch ON.

- Using a multimeter, check the EGR Temperature Sensor (G98) terminals 1 to 2 for voltage.

Specified value: 3.32 V (+/-.4 V)

If the specified value was Not obtained:

- Remove the Engine Control Module (ECM) (J623). Refer to the Repair Manual.

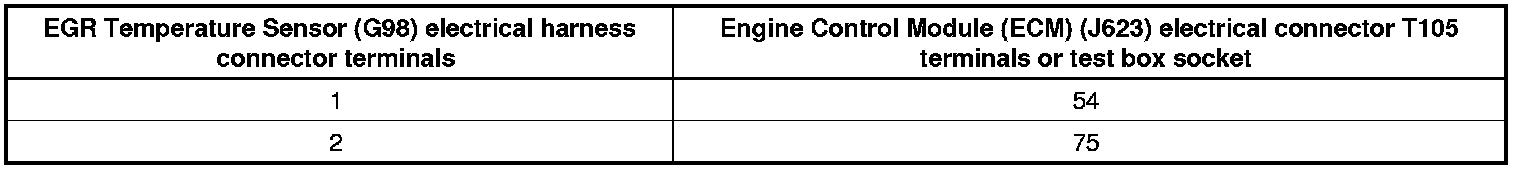

- Using a multimeter, check the EGR Temperature Sensor (G98) electrical harness connector terminals to the Engine Control Module (ECM) (J623) electrical harness connector T105 terminals for an open circuit according to the wiring diagram.






Specified value: 1.5 ohms Max.

If the specified value was Not obtained:

- Check the wiring for an open, high resistance or short to ground.

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If there was no fault found in the wiring and the voltage was not obtained:

- Replace the Engine Control Module (ECM) (J623). Refer to the Repair Manual.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Modes 01 - 09.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Programming and Relearning.
