Comfort System Central Control Module -J393-







Control Modules

Comfort System Central Control Module -J393-

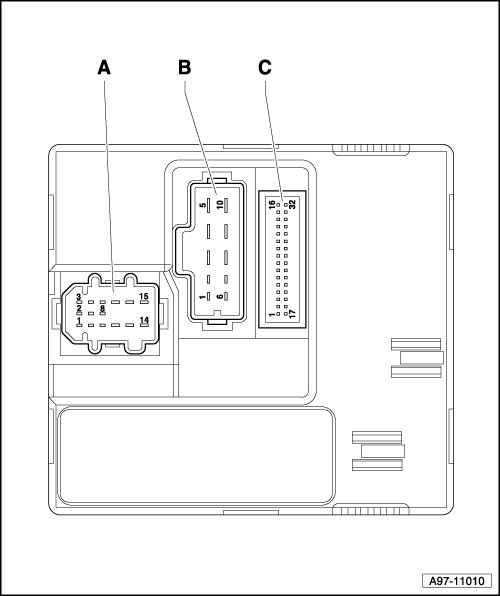

Pin Connectors





A - 15-Pin Connector, brown -T15a-

B - 10-Pin Connector, black -T10g-

C - 32-Pin Connector -T32d-
