Data Bus On Board Diagnostic Interface With MMI, Overview

Data Bus On Board Diagnostic Interface with MMI, Overview

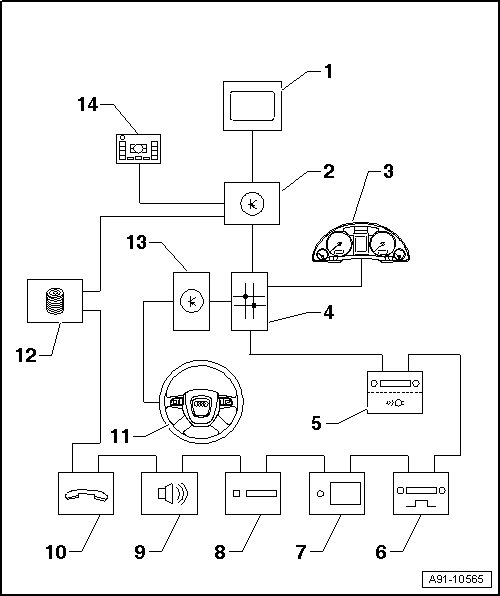

1 Front Information Display Control Head (J685)

• In the center of the instrument panel.

2 Front Information Display Control Head Control Module (J523)

• Behind the glove compartment.

3 Instrument Cluster Control Module (J285)

• In instrument cluster.

4 Data Bus On Board Diagnostic Interface (J533)

• Gateway.

• Behind driver's side instrument panel covers.

• Removing and installing, refer to => [ Data Bus On Board Diagnostic Interface (J533) ] Data Bus On Board Diagnostic Interface (J533).

5 Radio

• With Speech Input Control Module (J507) , depending on equipment.

• In right of luggage compartment behind side trim.

6 Digital Radio (R147)

• In right of luggage compartment behind side trim.

7 TV Tuner (R78)

• In right of luggage compartment behind side trim.

8 Navigation System with CD Drive Control Module (J401)

• In right of luggage compartment below floor covering.

9 Digital Sound System Control Module (J525)

• In right of luggage compartment behind side trim.

10 Telephone Transceiver (R36)

• Under the carpet in the front passenger footwell.

11 Multifunction Steering Wheel

12 Media Player, Position 2 (R119)

• In front center armrest.

13 Steering Column Electronic Systems Control Module (J527)

• On steering column.

14 Multimedia System Control Head (E380)

• In the bottom of the center console.
