Information Bus: Locations

Control Modules

Data Bus On Board Diagnostic Interface -J533-

Pin Connectors, through
May 2008

*** *** MOST Bus
*** 26-Pin Connector -T26b- , black

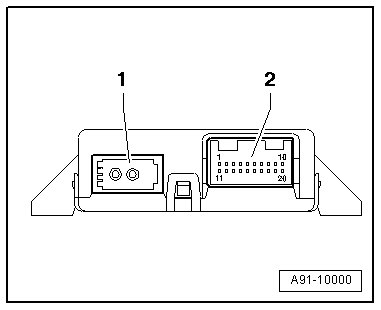

Pin Connectors, from June
2008

*** *** MOST Bus
*** 20-Pin Connector -T20- , black
