Accelerator Pedal Module With Throttle Position Sensors

Accelerator Pedal Module with Throttle Position Sensors

Removing

- Remove driver's side lower instrument panel cover.

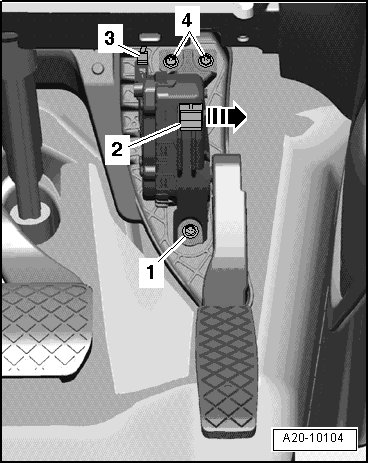

- Remove driver's side lower instrument panel cover mount - 2 - - arrow -.






- Disconnect the connector - 3 -.

- Remove bolts - 1 and 4 - and remove accelerator pedal module.

Installing

• Tightening specification, refer to => [ Accelerator Pedal Module Overview ] Accelerator Pedal Module Overview.

Install in reverse order, paying attention to the following:

- Install driver's side lower instrument panel cover.

- Perform after the first kick-down adaptation in "Guided Functions" vehicle diagnostic tester.
