Center Instrument Panel Relay and Fuse Panel

Center Instrument Panel Relay and Fuse Panel

Removing






- Remove driver's side upper instrument panel cover.

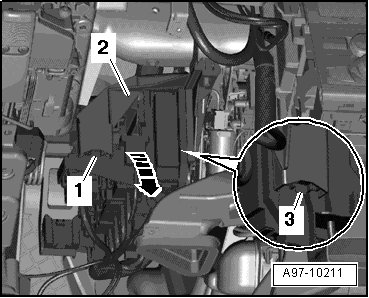

- Release retaining clips - 1 - and - 3 - and pivot center instrument panel relay and fuse panel - 2 - down out of retaining frame - arrow -.

- Remove relay or control modules, then unclip respective relay carrier.

- Release the retaining clips - arrow - and press fuse panel - 1 - back out of relay and fuse panel.






• Precise assignment of center instrument panel relay and fuse panel can be seen from appropriate wiring diagram.

Installing

Install in reverse order of removal, observing the following:

- Engage center instrument panel relay and fuse panel in retaining frame.

- Install driver's side upper instrument panel cover.
