12 V Sockets 3 and 4

12 V Sockets 3 and 4

Special tools, testers and auxiliary items required

• Release Tool (T40148)

Removing

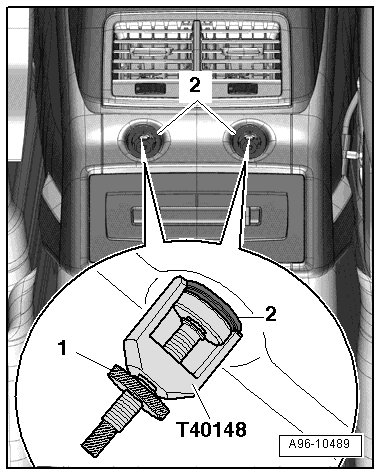

- Slide the (T40148) as far as the stop into the 12V socket - 1 -.

- Rotate the thumbwheel - 2 - on the (T40148) clockwise as far as the stop.

• The piston - 2 - is pulled upward and the release tabs - 1 - on the (T40148) spread - arrows -.






- Remove the 12V socket from the illumination ring with the Socket illumination (L42) using the (T40148).

- Disconnect the electrical connector.

Installing

Install in reverse order of removal, observing the following:

Risk of injury.

• After removing the (T40148) , check to see if the lighter retaining tabs are bent.

• If the retaining tabs are bend, bend them back so the lighter does not slide out.

- Remove the support - 1 - on the (T40148).






- Slide the piston down and hold it in place.

- Rotate the thumbwheel - 4 - on the (T40148) counterclockwise - arrow -. This loosens the release tabs - 2 - on the 12V socket - 3 - so the (T40148) can be removed.
