Headlamp Range Control Module (J431)

Headlamp Range Control Module (J431)

- If the control module was replaced, select the "Replace" function for the respective control module in "Guided Fault Finding" or "Guided Functions" Vehicle Diagnosis, Testing & Information System (VAS5051B).

Removing






- Remove driver's side upper instrument panel cover.

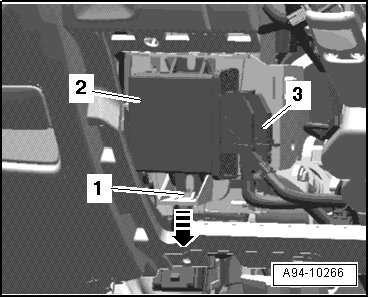

- Press retaining clip - 1 - to side - arrow - and remove Headlamp Range Control Module - item 2 - from retaining frame.

- Disconnect electrical connector - 3 -.

- To disconnect electrical connector, press catch - 1 -, turn retaining bracket in - direction of arrow - and remove connector.






Installing

Install in reverse order of removal, observing the following:

- Install driver's side upper instrument panel cover.
