Garage Door Opener Control Head (E284)

Garage Door Opener Control Head (E284)

Removing






- Switch off ignition and remove ignition key.

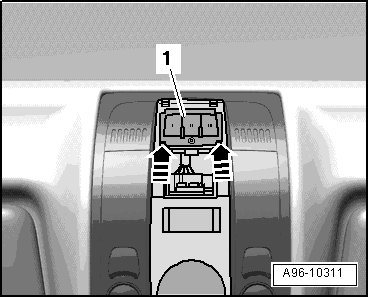

- Open eyeglass compartment - 1 - and release center covers - 2 - and - 3 - of interior/reading light - arrow -.

- Release retaining springs - arrows - using a small screwdriver and pivot Garage Door Opener Control Head out of interior/reading light.






- Disconnect the connector.

Installing

Install in reverse order of removal, observing the following:

- Connect electrical connector.

- Press on center cover for interior/reading light until it engages.
