Instrument Panel Button Unit

Instrument Panel Button Unit

Removing






- Remove the center vents in the instrument panel..

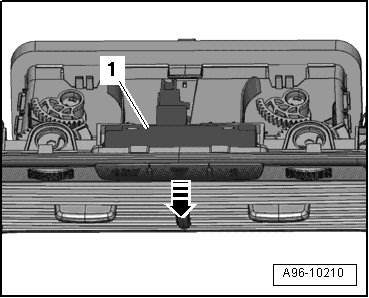

- Slide button unit - 1 - out of decorative trim with instrument panel vent - arrow -.

Installing

Install in reverse order of removal, observing the following:

- Press button unit into switch housing until lock mechanism engages.

- Install the center vents in the instrument panel..
