Glove Compartment Cover Control Cable, Adjusting

Glove Compartment Cover Control Cable, Adjusting

Procedure






- Remove the glove compartment. Refer to => [ Glove Compartment ] Glove Compartment.

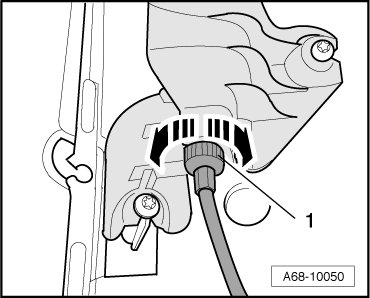

- Adjust the glove compartment cover release control cable by turning adjustment nut - 1 - without play.

- Make sure the glove compartment lid opens and closes properly.

- Adjust if necessary.
