Diagram 13/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


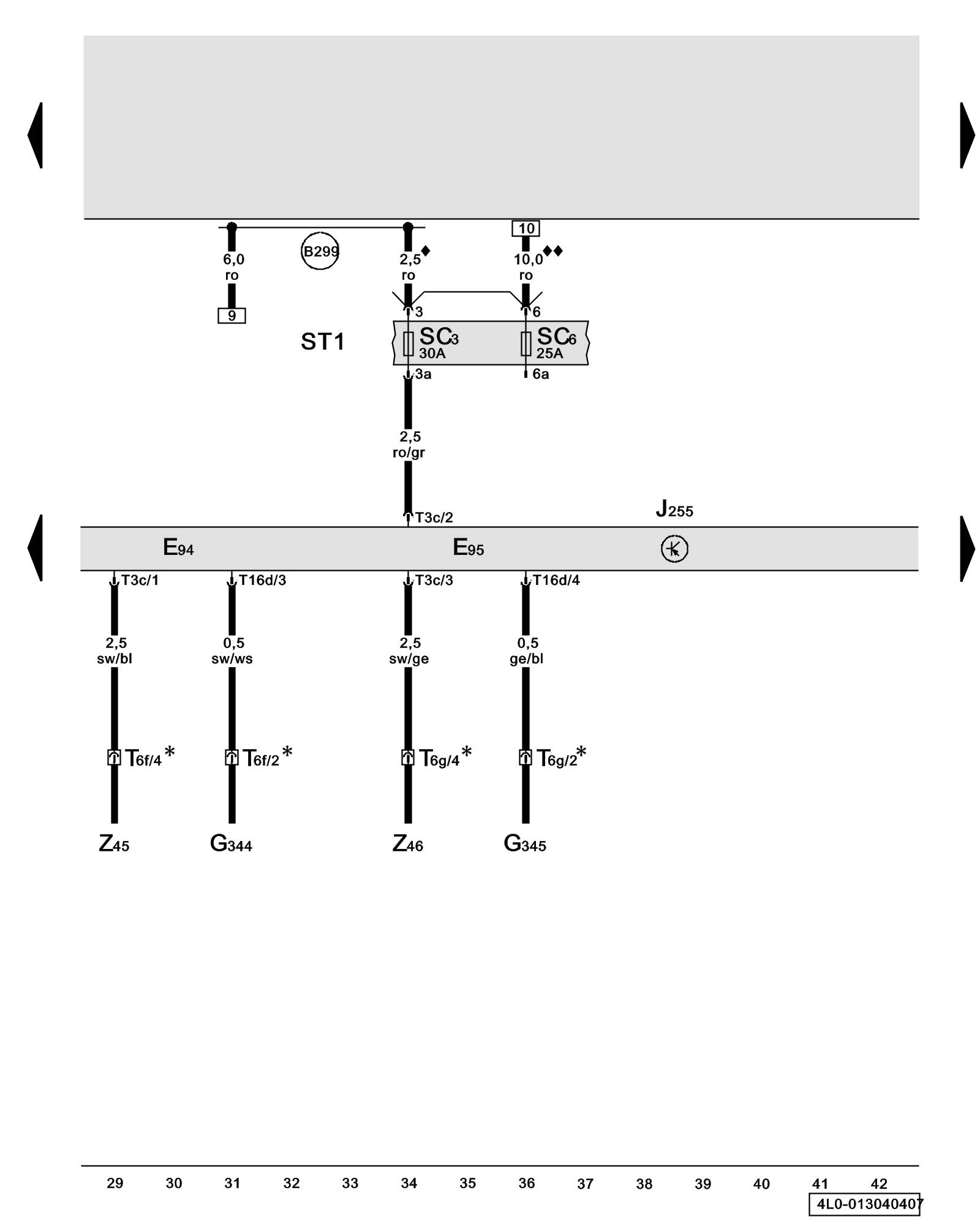

Climatronic Control Module, Front Seat Temperature Sensor, Front Heated Seat, Driver's Heated Seat Adjuster





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E94 - Driver's Heated Seat Adjuster

E95 - Front Passenger's Heated Seat Adjuster

G344 - Left Front Seat Temperature Sensor Locations

G345 - Right Front Seat Temperature Sensor Locations

J255 - Climatronic Control Module Overview Of Control Modules

SC3 - Fuse 3 (on fuse panel C) Locations

SC6 - Fuse 6 (on fuse panel C) Locations

T3c - 3-Pin Connector, black (Connector E), on Climatronic control module

T6f - 6-Pin Connector, green, below driver's seat

T6g - 6-Pin Connector, green, below front passenger's seat

T16d - 16-Pin Connector, black (Connector D), on Climatronic control module

Z45 - Front Left Heated Seat Locations

Z46 - Front Right Heated Seat Locations

(B299) - Plus Connection 3 (30) (in main wiring harness)

* - => Wiring Diagram Heated Seats

♦ - Through May 2007

♦♦ - from June 2007

Previous Diagram 13/3 (Tracks 15-28)

Next Diagram 13/5 (Tracks 43-56)
