Diagram 95/25 (Tracks 323-336)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

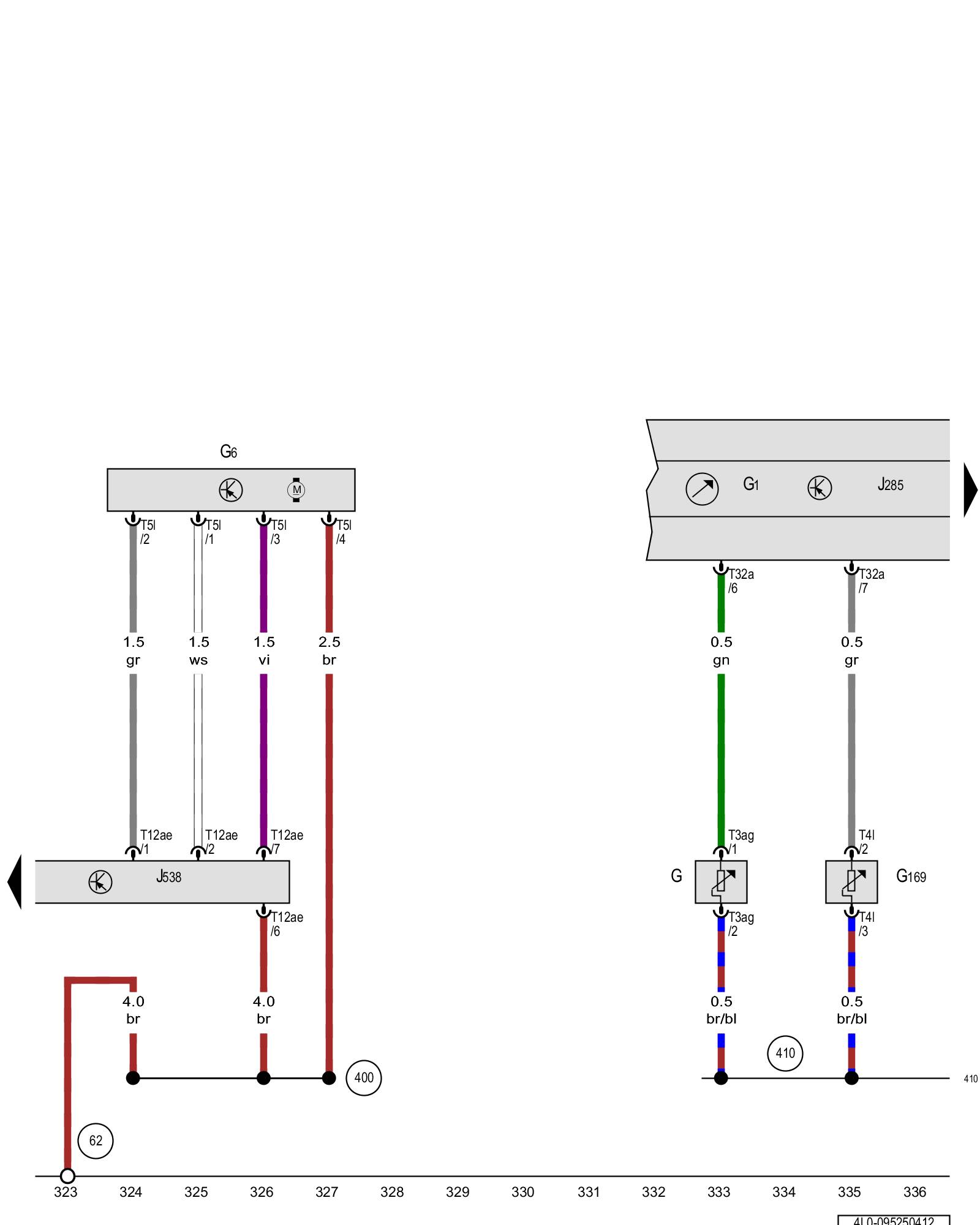

Transfer fuel pump, Fuel level sensor 2, Instrument cluster control module, Fuel pump control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G - Fuel level sensor Locations

G1 - Fuel gauge

G6 - Transfer fuel pump Locations

G169 - Fuel level sensor 2 Locations

J285 - Instrument cluster control module Overview Of Control Modules

J538 - Fuel pump control module, on the fuel tank Overview Of Control Modules Locations

T3ag - 3-pin connector

T4l - 4-pin connector

T5l - 5-pin connector

T12ae - 12-pin connector

T32a - 32-pin connector Locations

(62) - Ground connection on right C-pillar

(400) - Ground connection 35 (in main wiring harness)

(410) - Sensor ground connection 1 (in main wiring harness)

Previous Diagram 95/24 (Tracks 309-322)

Next Diagram 95/26 (Tracks 337-350)
