Diagram 95/24 (Tracks 309-322)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

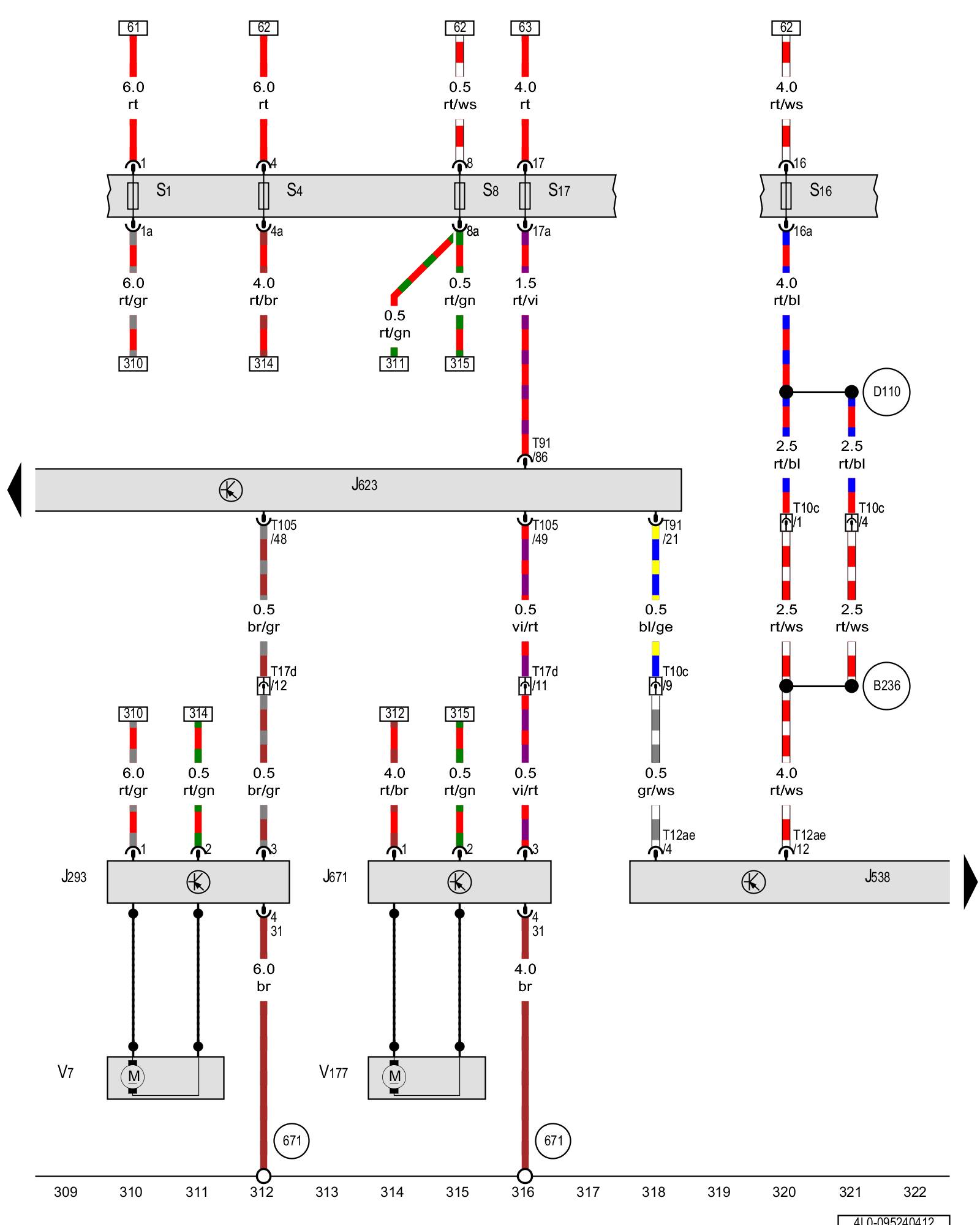

Coolant fan control module, Fuel pump control module, Engine control module, Coolant fan, Coolant fan 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J293 - Coolant fan control module Locations

J538 - Fuel pump control module, on the fuel tank Overview Of Control Modules Locations

J623 - Engine control module Overview Of Control Modules

J671 - Coolant fan control module 2 Locations

S1 - Fuse 1 (on fuse panel)

S4 - Fuse 4 (on fuse panel)

S8 - Fuse 8 (on fuse panel)

S16 - Fuse 16 (on fuse panel)

S17 - Fuse 17 (on fuse panel)

T10c - 10-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T12ae - 12-pin connector

T17d - 17-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T91 - 91-pin connector

T105 - 105-pin connector

V7 - Coolant fan Locations

V177 - Coolant fan 2 Locations

(671) - Ground connection 1 on left front longitudinal member Locations

(B236) - Positive connection 6 (30a) (in interior wiring harness)

(D110) - Connection (8) (in engine compartment wiring harness)

Previous Diagram 95/23 (Tracks 295-308)

Next Diagram 95/25 (Tracks 323-336)
