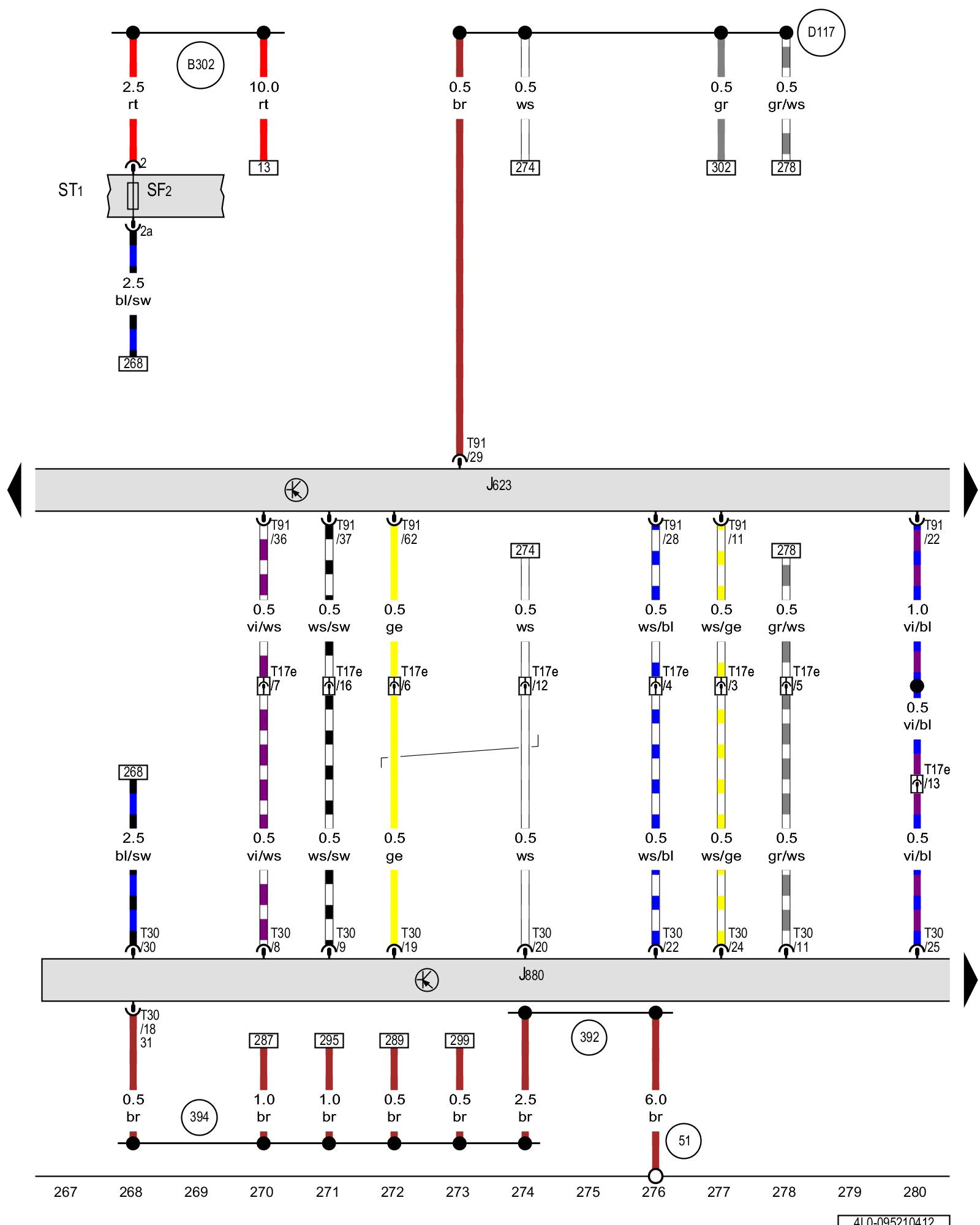

Diagram 95/21 (Tracks 267-280)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine control module, Reducing agent metering system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Overview Of Control Modules

J880 - Reducing agent metering system control module Locations

ST1 - Fuse panel 1

SF2 - Fuse 2 (on fuse panel F) Overview Of Fuses

T17e - 17-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T30 - 30-pin connector

T91 - 91-pin connector

(51) - Ground connection in luggage compartment, right Locations

(392) - Ground connection 27 (in main wiring harness)

(394) - Ground connection 29 (in main wiring harness)

(B302) - Positive connection 6 (30) (in main wiring harness)

(D117) - Connection (15) (in engine compartment wiring harness)
