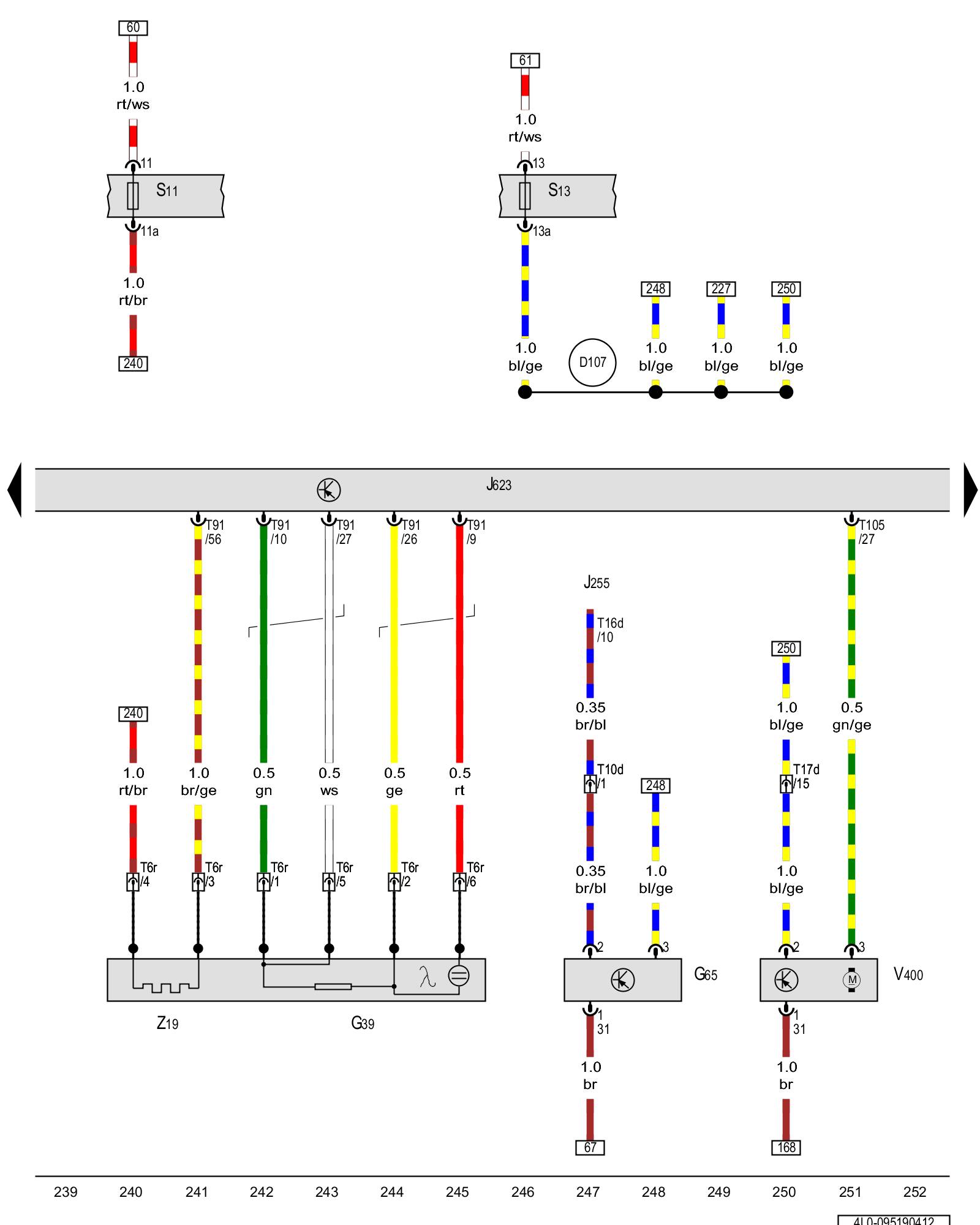

Diagram 95/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Heated oxygen sensor, High pressure sensor, Engine control module, EGR cooler pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated oxygen sensor Locations

G65 - High pressure sensor Components Outside Pass Compartment

J255 - Climatronic control module Overview Of Control Modules

J623 - Engine control module Overview Of Control Modules

S11 - Fuse 11 (on fuse panel)

S13 - Fuse 13 (on fuse panel)

T6r - 6-pin connector, black

T10d - 10-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T16d - 16-pin connector Climatronic Control Module -J255- , A/C Basic

T17d - 17-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T91 - 91-pin connector

T105 - 105-pin connector

V400 - EGR cooler pump Locations

Z19 - Oxygen sensor heater

(D107) - Connection (5) (in engine compartment wiring harness)
