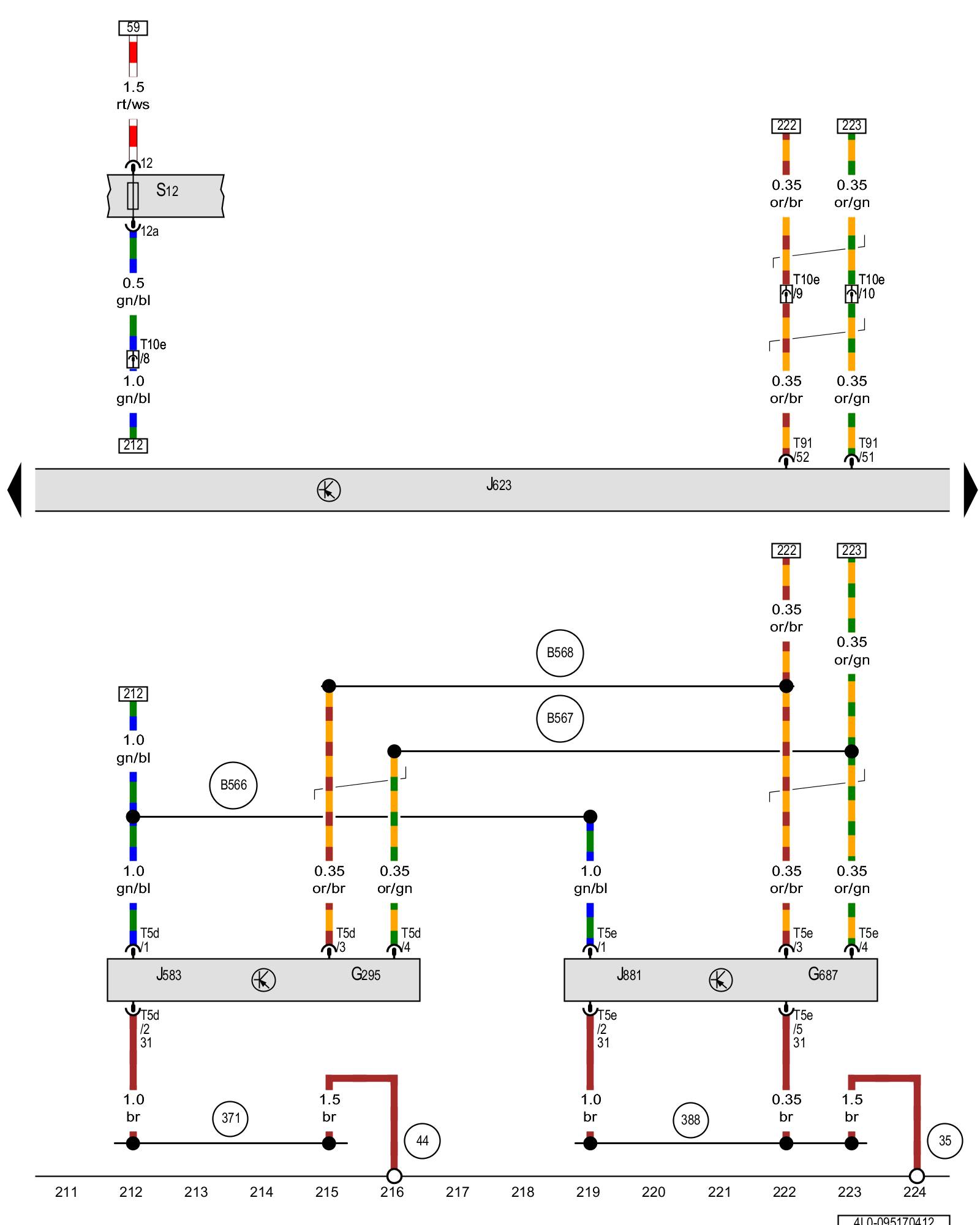

Diagram 95/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


NOx sensor control module, Engine control module, NOx sensor control module 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G295 - NOx sensor Locations

G687 - NOx sensor 2 Locations

J583 - NOx sensor control module Locations

J623 - Engine control module Overview Of Control Modules

J881 - NOx sensor control module 2 Locations

S12 - Fuse 12 (on fuse panel)

T5d - 5-pin connector

T5e - 5-pin connector

T10e - 10-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T91 - 91-pin connector

(35) - Ground connection under front passenger seat Locations

(44) - Ground connection on A-pillar, lower left Locations

(371) - Ground connection 6 (in main wiring harness)

(388) - Ground connection 23 (in main wiring harness)

(B566) - Connection 33 (in main wiring harness)

(B567) - Connection 34 (in main wiring harness)

(B568) - Connection 35 (in main wiring harness)
