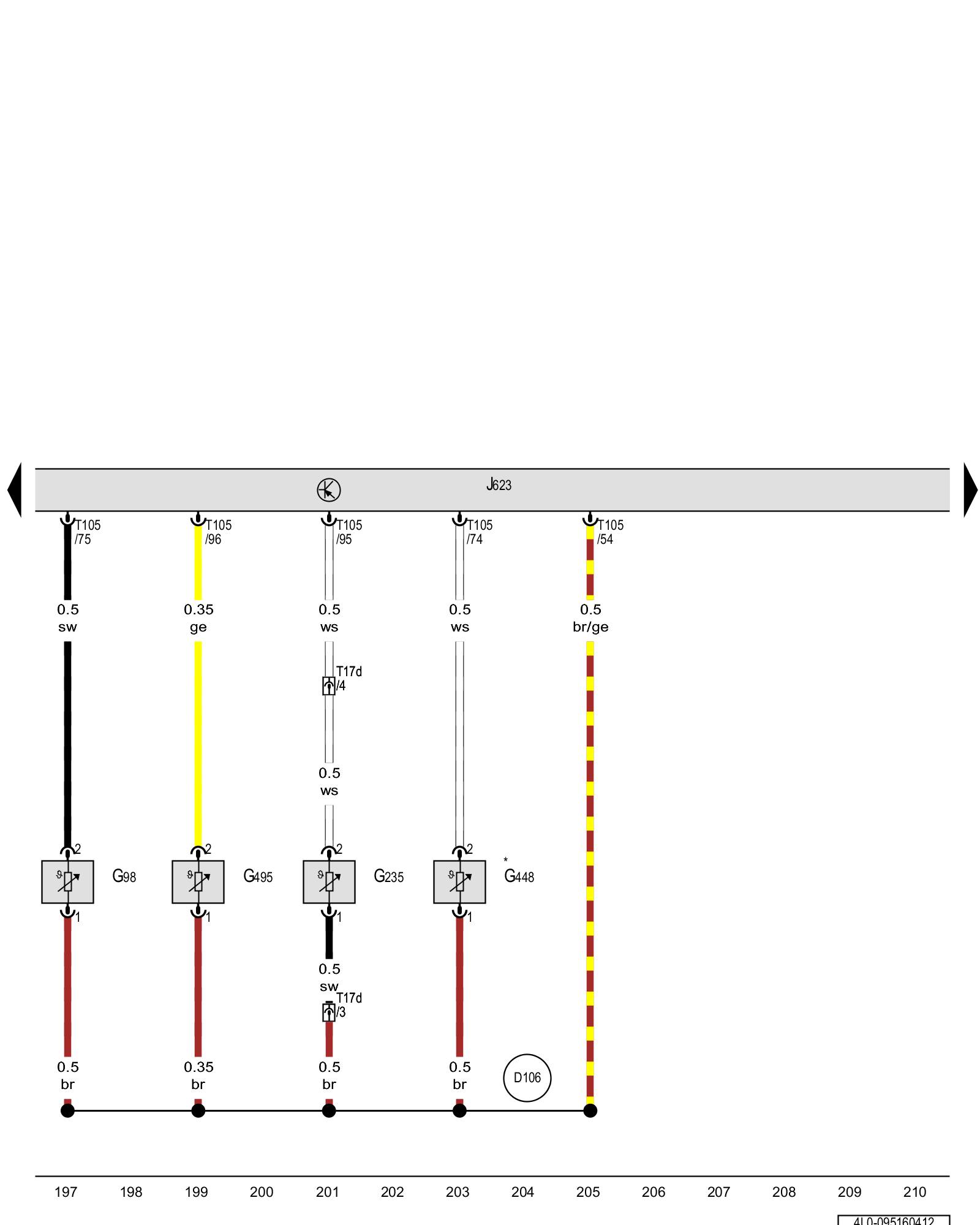

Diagram 95/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


EGR temperature sensor, Exhaust gas temperature sensor 1, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G98 - EGR temperature sensor Locations

G235 - Exhaust gas temperature sensor 1 Locations

G448 - Exhaust gas temperature sensor 2 Locations

G495 - Exhaust gas temperature sensor 3 Locations

J623 - Engine control module Overview Of Control Modules

T17d - 17-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T105 - 105-pin connector

(D106) - Connection (4) (in engine compartment wiring harness)

* - Through May 2010
