Diagram 95/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

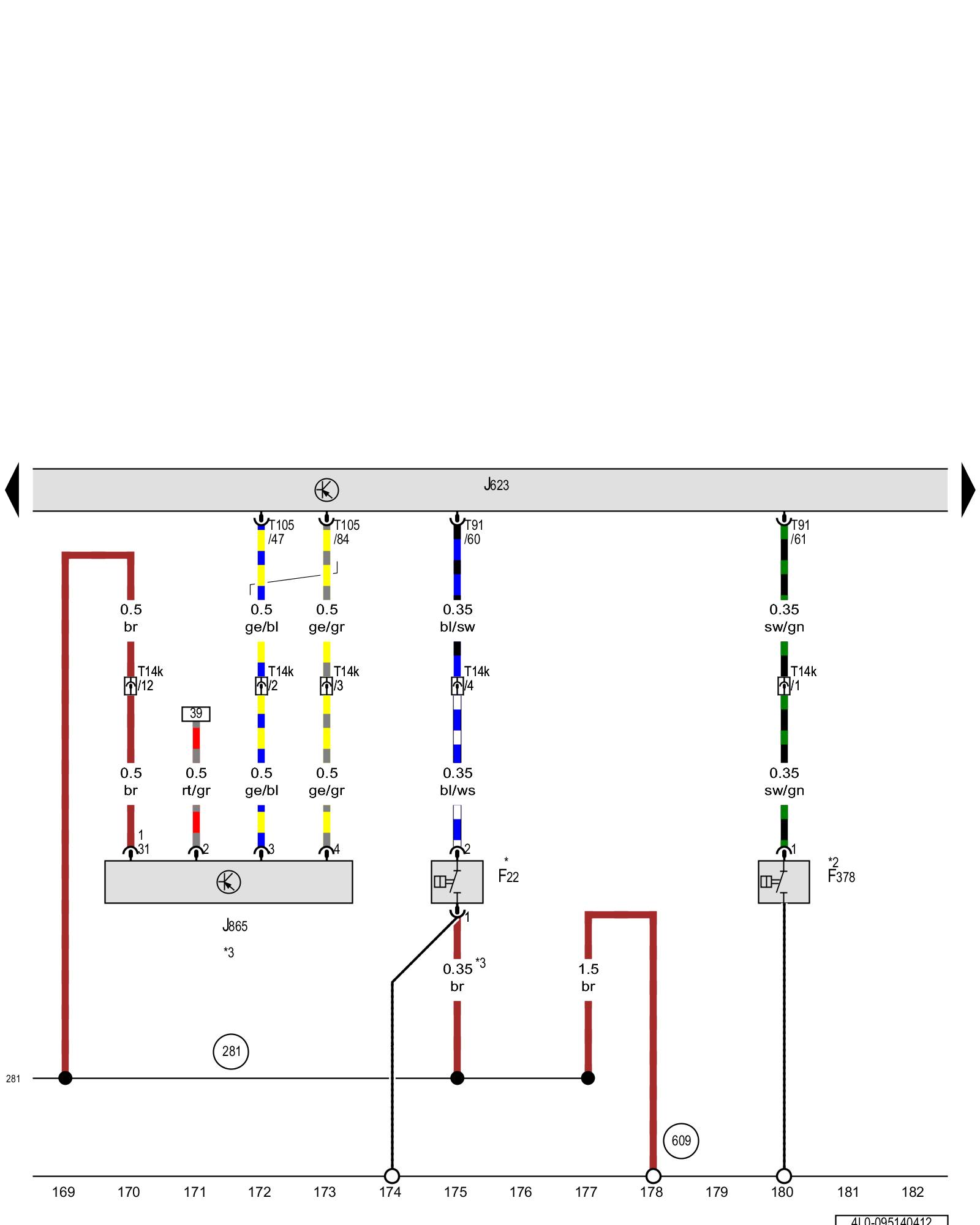

Oil pressure switch, Reduced oil pressure switch, Engine control module, Charge air cooler bypass control unit





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F22 - Oil pressure switch Locations

F378 - Reduced oil pressure switch Locations

J623 - Engine control module Overview Of Control Modules

J865 - Charge air cooler bypass control unit Locations

T14k - 14-pin connector, in the engine compartment, right

T91 - 91-pin connector

T105 - 105-pin connector

(281) - Ground connection 1 (in engine wiring harness)

(609) - Ground connection in plenum chamber, right Locations

* - 2,6 bar

*2 - 0.9 bar

*3 - Omitted as a running change

Previous Diagram 95/13 (Tracks 155-168)

Next Diagram 95/15 (Tracks 183-196)
