Diagram 95/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

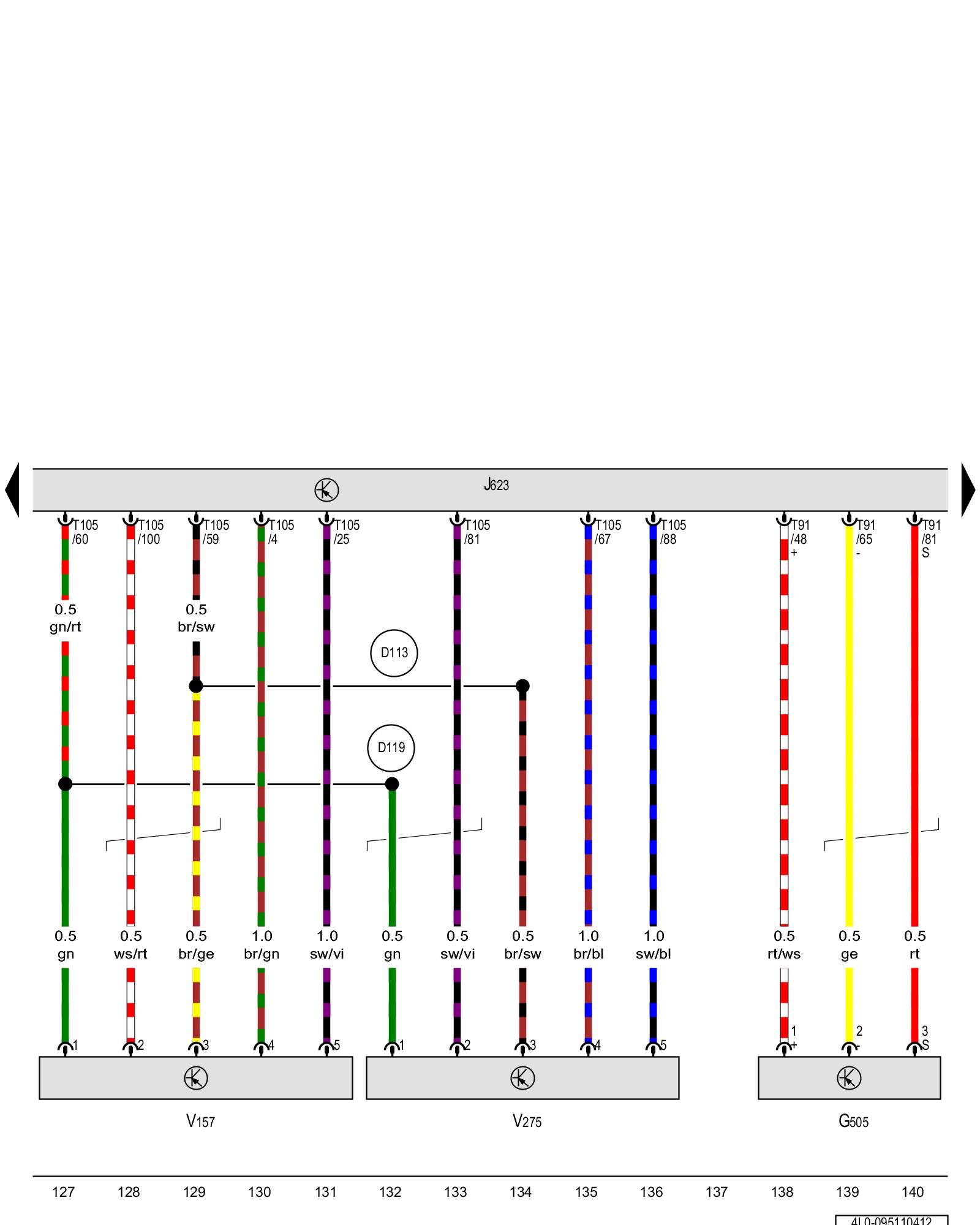

Differential pressure sensor, Engine control module, Intake flap motor, Intake flap motor 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G505 - Differential pressure sensor Locations

J623 - Engine control module Overview Of Control Modules

T91 - 91-pin connector

T105 - 105-pin connector

V157 - Intake flap motor Locations

V275 - Intake flap motor 2 Locations

(D113) - Connection (11) (in engine compartment wiring harness)

(D119) - Connection (17) (in engine compartment wiring harness)

Previous Diagram 95/10 (Tracks 113-126)

Next Diagram 95/12 (Tracks 141-154)
