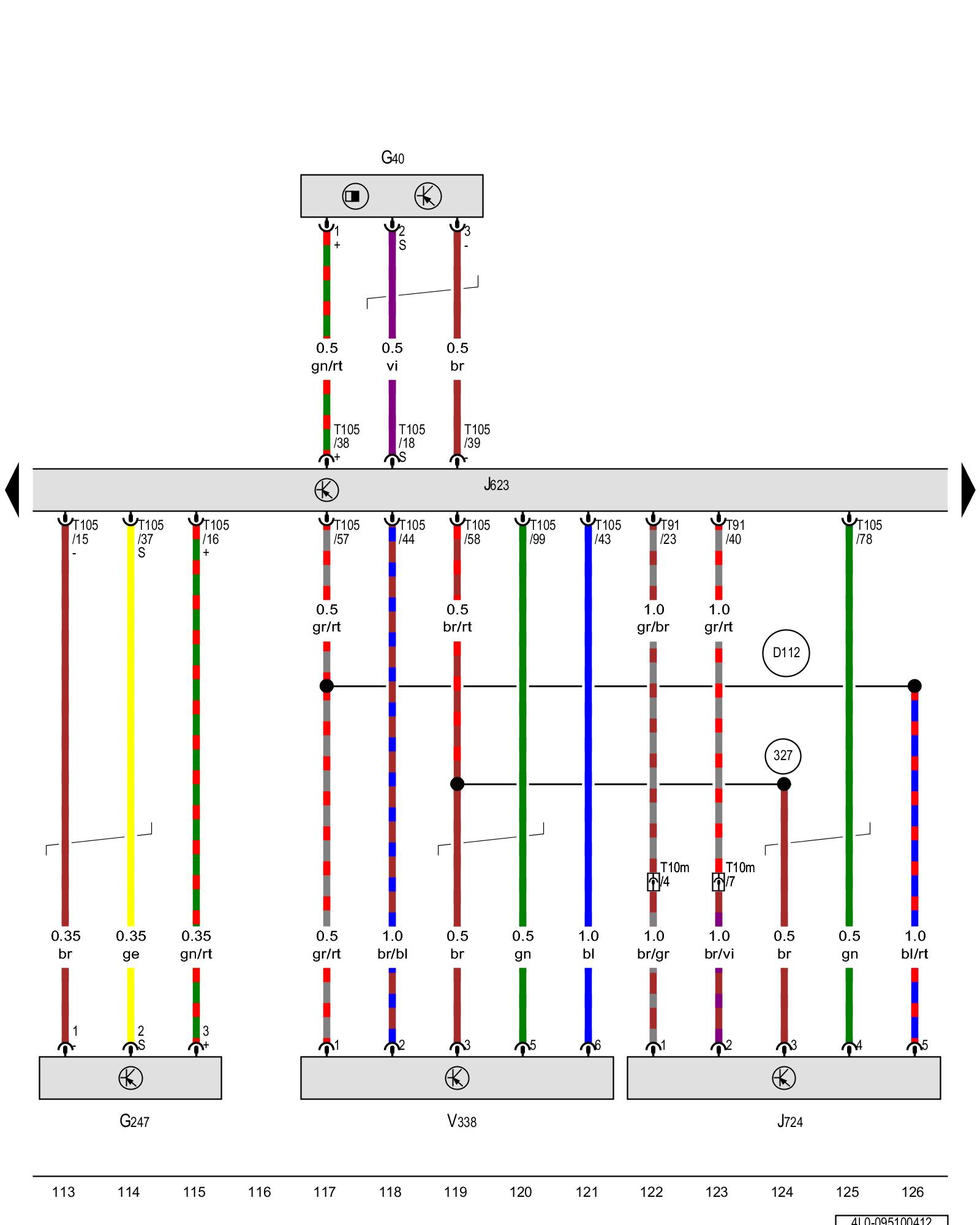

Diagram 95/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Camshaft position sensor, Fuel pressure sensor, Engine control module, Turbocharger control module 1, EGR motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G40 - Camshaft position sensor Locations

G247 - Fuel pressure sensor Locations

J623 - Engine control module Overview Of Control Modules

J724 - Turbocharger control module 1 Locations

T10m - 10-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T91 - 91-pin connector

T105 - 105-pin connector

V338 - EGR motor Locations

(327) - Sensor ground connection (in engine compartment wiring harness)

(D112) - Connection (10) (in engine compartment wiring harness)
