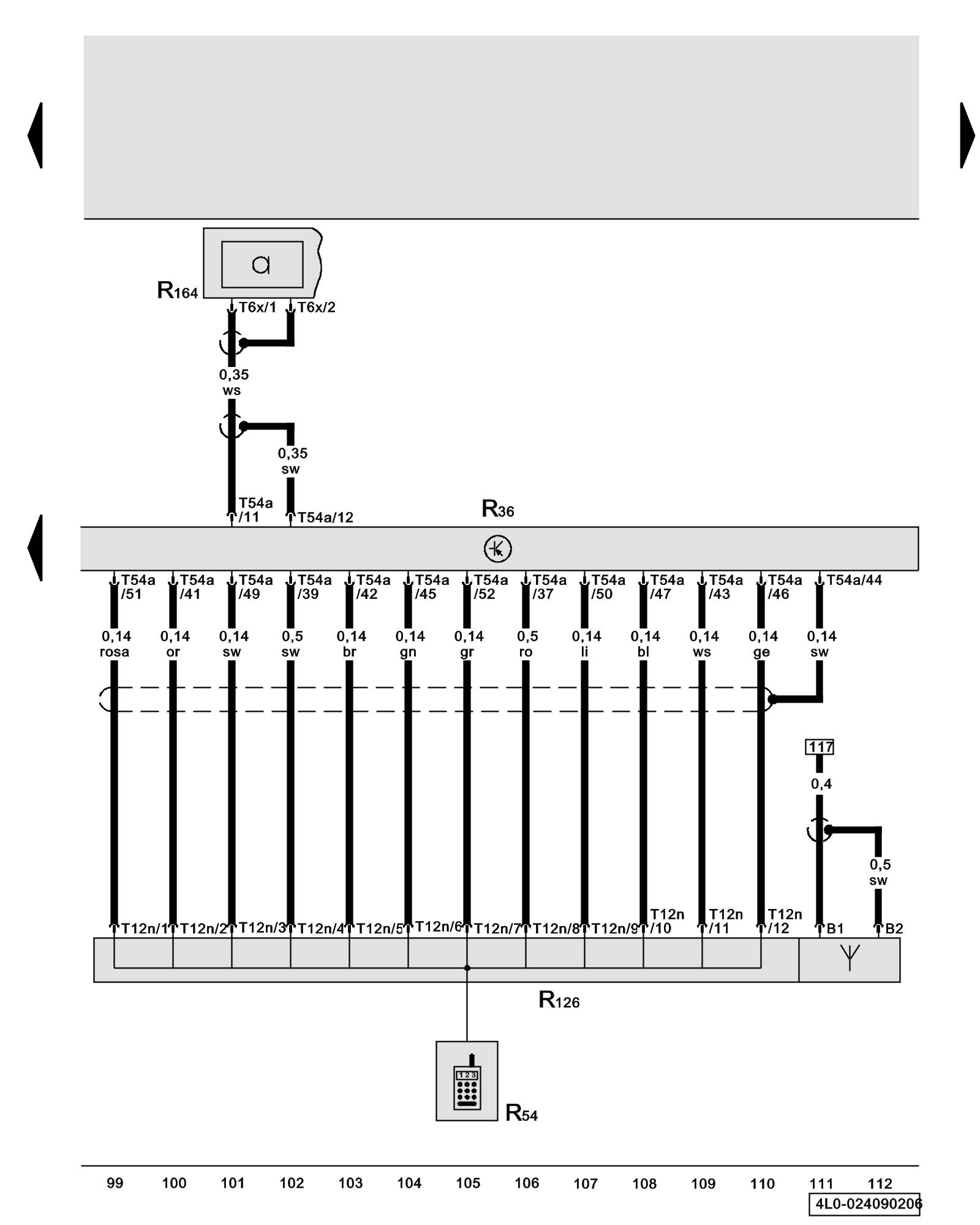

Diagram 24/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone Transceiver, Telephone Baseplate, Cellular Telephone, Microphone Unit (in front roof module)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R36 - Telephone Transceiver Overview Of Control Modules

R54 - Cellular Telephone Phone System Components Locations

R126 - Telephone Baseplate Phone System Components Locations

R164 - Microphone Unit (in front roof module) Phone System Components Locations

T6x - 6-Pin Connector, blue, on microphone unit (in front roof module)

T12n - 12-Pin Connector, black, on telephone baseplate

T54a - 54-Pin Connector, telephone transceiver
