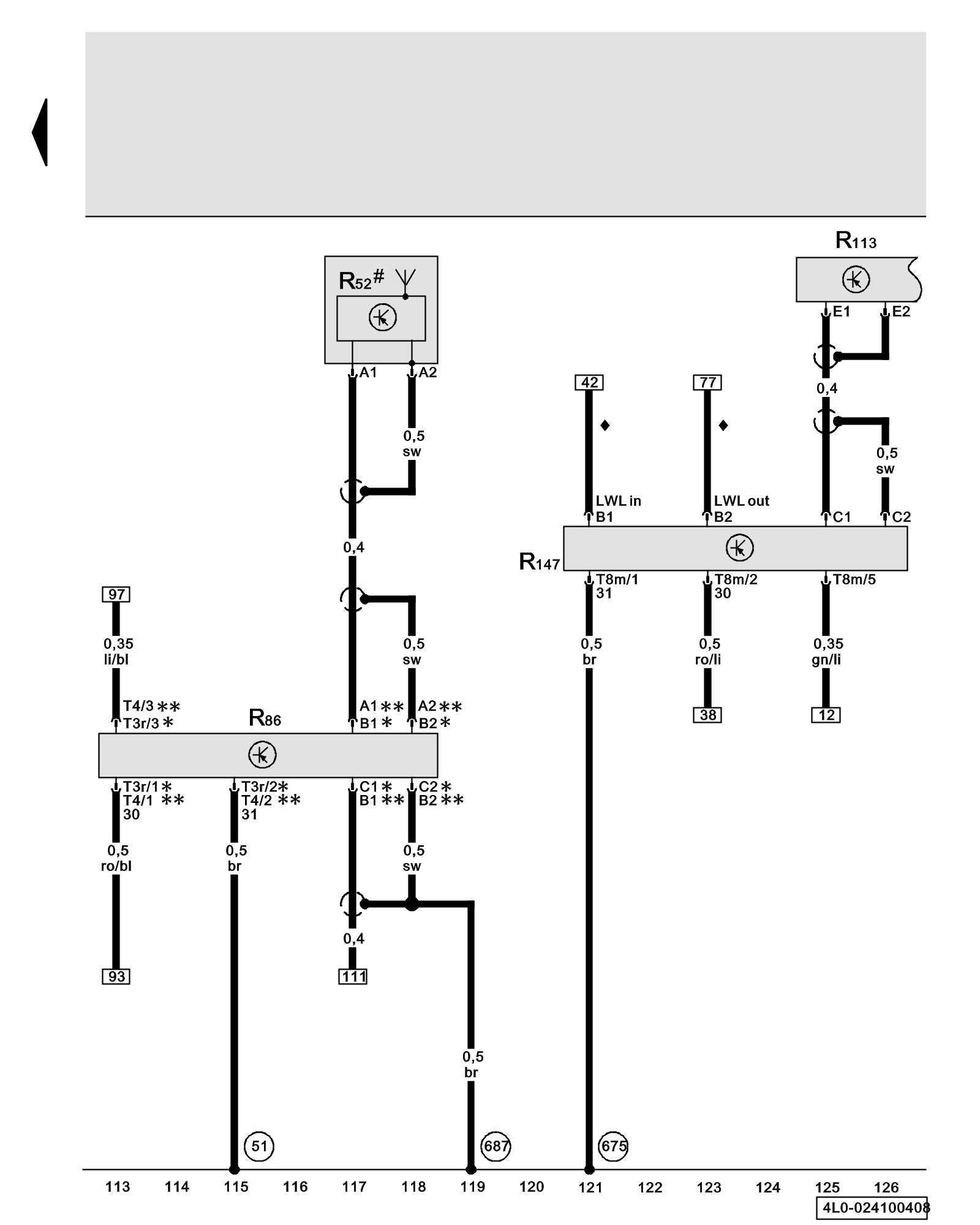

Diagram 24/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Amplifier for Telephone, Digital Radio, Antenna for Radio, Telephone, Navigation System, Antenna Amplifier 4





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R52 - Antenna for Radio, Telephone, Navigation System Locations

R86 - Amplifier for Telephone Overview Of Control Modules

R113 - Antenna Amplifier 4 Locations

R147 - Digital Radio Overview Of Control Modules

T3r - 3-Pin Connector, black, on amplifier for telephone

T4 - 4-Pin Connector, on amplifier for telephone

T8m - 8-Pin Connector, black, on digital radio

(51) - Ground Connection (in luggage compartment, right) Locations

(675) - Ground Connection 2 (in right luggage compartment) Locations

(687) - Ground Connection 1 (on center tunnel) Locations

* - Through May 2008

** - from June 2008

# - Roof Antenna

♦ - FOC - Fibre Optic Conductor => Wiring Diagram Infotainment-Data Bus (Most-Ring)
