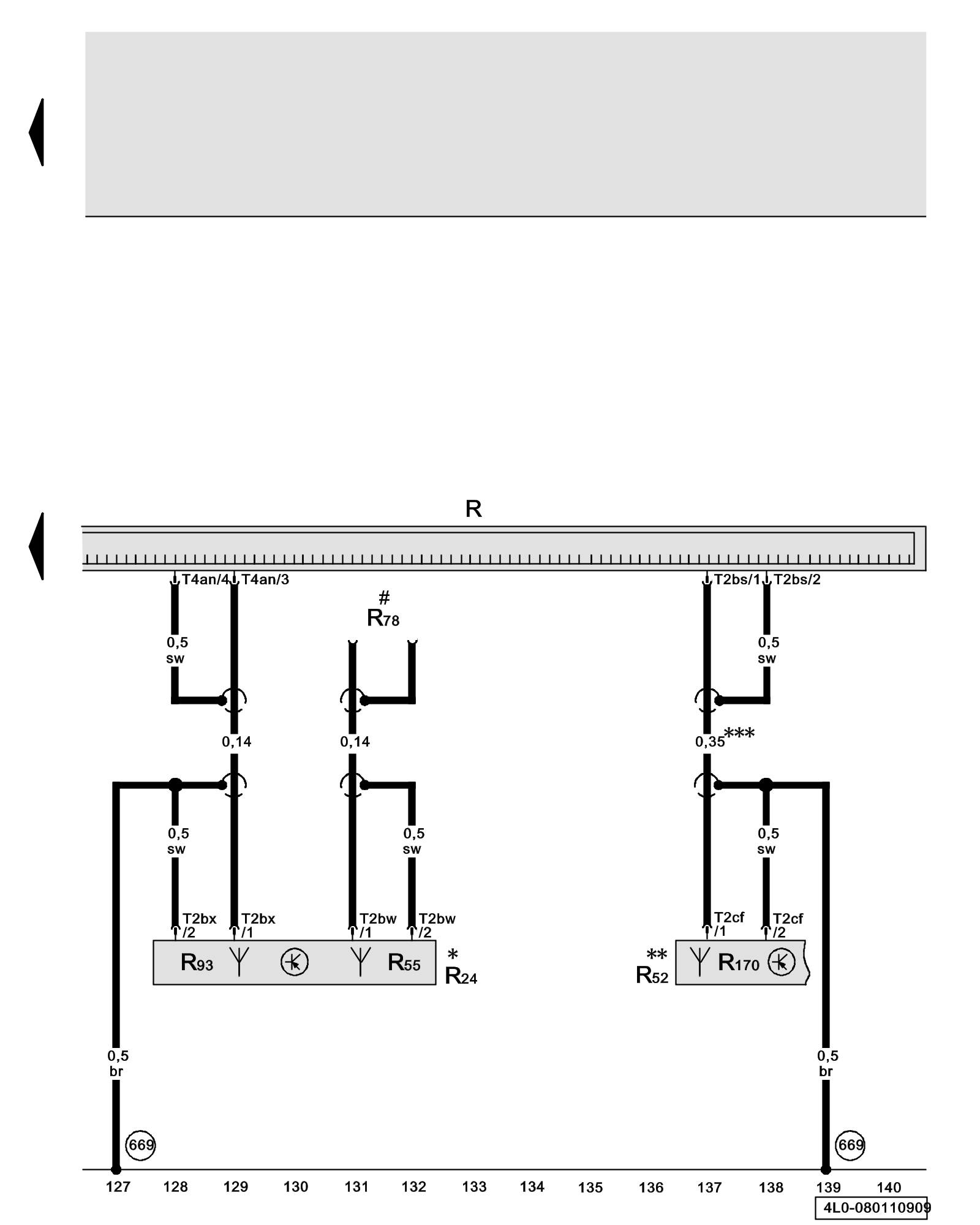

Diagram 80/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Antenna for Radio, Telephone, Navigation System, Antenna Amplifier





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Overview Of Control Modules

R24 - Antenna Amplifier Locations

R52 - Antenna for Radio, Telephone, Navigation System Locations

R55 - TV Antenna 1 Locations

R78 - TV Tuner Overview Of Control Modules

R93 - Radio Antenna 2 Locations

R170 - Satellite Antenna Locations

T2bs - Double Connector, green (Connector G), on radio

T2bw - Double Connector, on antenna amplifier

T2bx - Double Connector, on antenna amplifier

T2cf - Double Connector, green, on antenna for radio, telephone, navigation system

T4an - 4-Pin Connector, white (Connector F), on radio

(669) - Ground Connection 2 (on right D-pillar) Locations

* - In spoiler

** - Roof Antenna

*** - Only models with US equipment

# - Only models with TV Tuner => Applicable Wiring Diagram
