Diagram 77/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

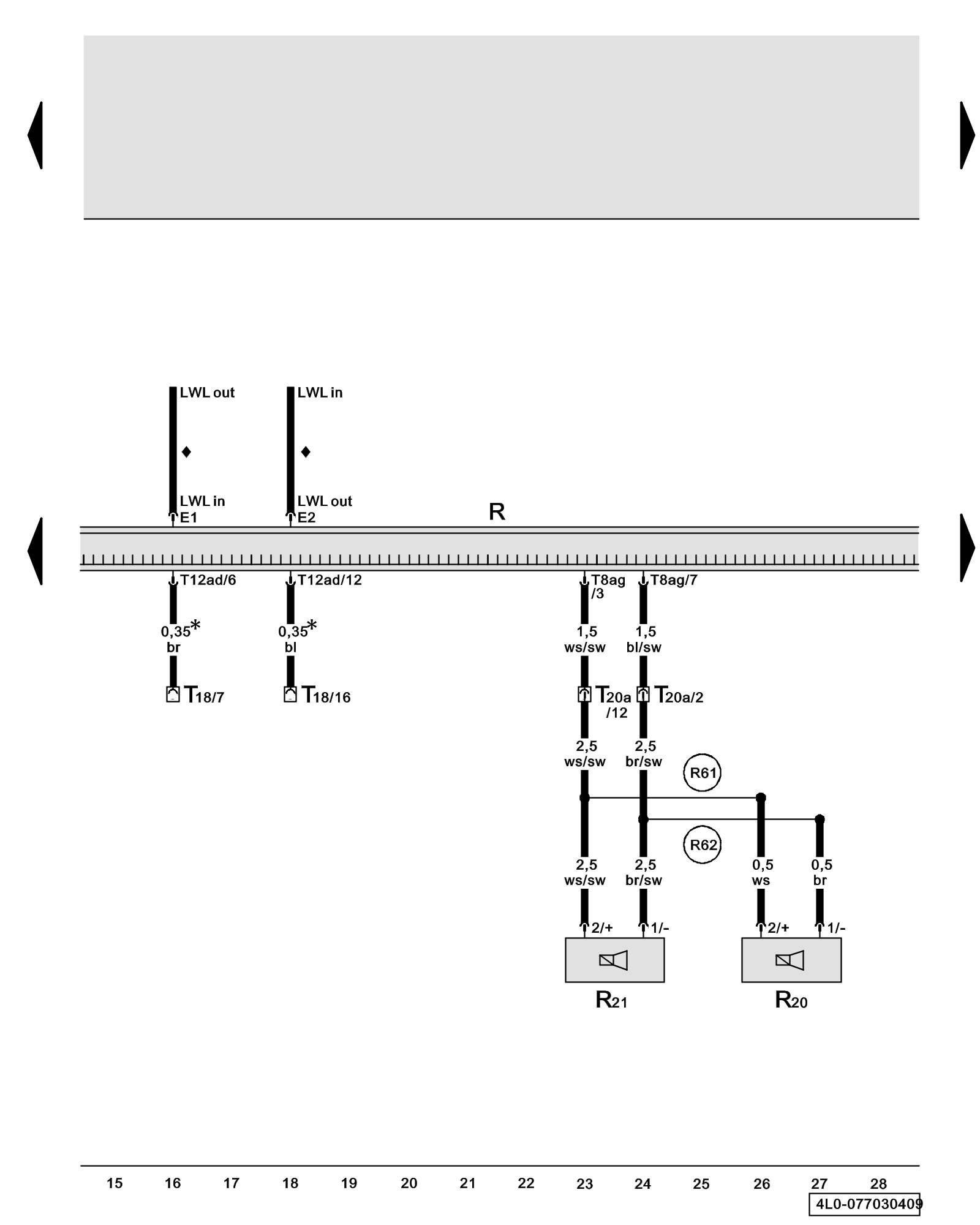

Radio, Left Front Treble Speaker, Left Front Bass Speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Overview Of Control Modules

R20 - Left Front Treble Speaker

R21 - Left Front Bass Speaker

T8ag - 8-Pin Connector, brown (Connector A), on radio

T12ad - 12-Pin Connector, blue (Connector B), on radio

T18 - 18-Pin Connector, black, behind glove compartment

T20a - 20-Pin Connector, black, front left door

(R61) - Left Front Speaker Connection (plus) (in driver's door wiring harness)

(R62) - Left Front Speaker Connection (minus) (in driver's door wiring harness)

* - => Applicable Wiring Diagram Cellular Telephone Preparation without Hands Free System (VDA-Interface)

♦ - FOC - Fibre Optic Conductor => Applicable Wiring Diagram Infotainment-Data Bus (Most-Ring)
