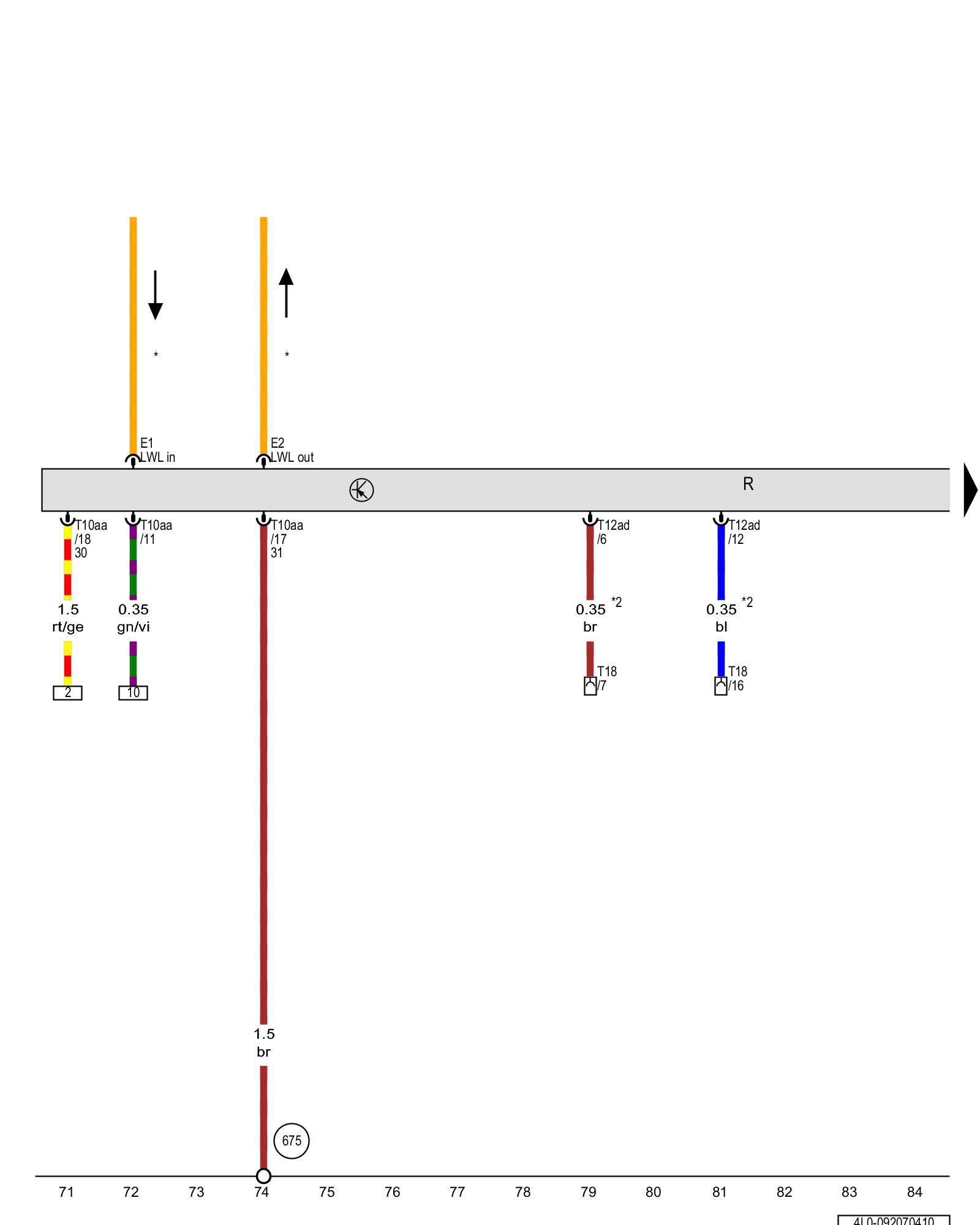

Diagram 92/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Overview Of Control Modules

T10aa - 10-pin connector

T12ad - 12-pin connector

T18 - 18-pin connector, behind the glove compartment

(675) - Ground connection 2 in luggage compartment, right Locations

* - Fiber optic cable

*2 - Only for vehicles with cell phone preparation

Previous Diagram 92/6 (Tracks 57-70)

Next Diagram 92/8 (Tracks 85-98)
