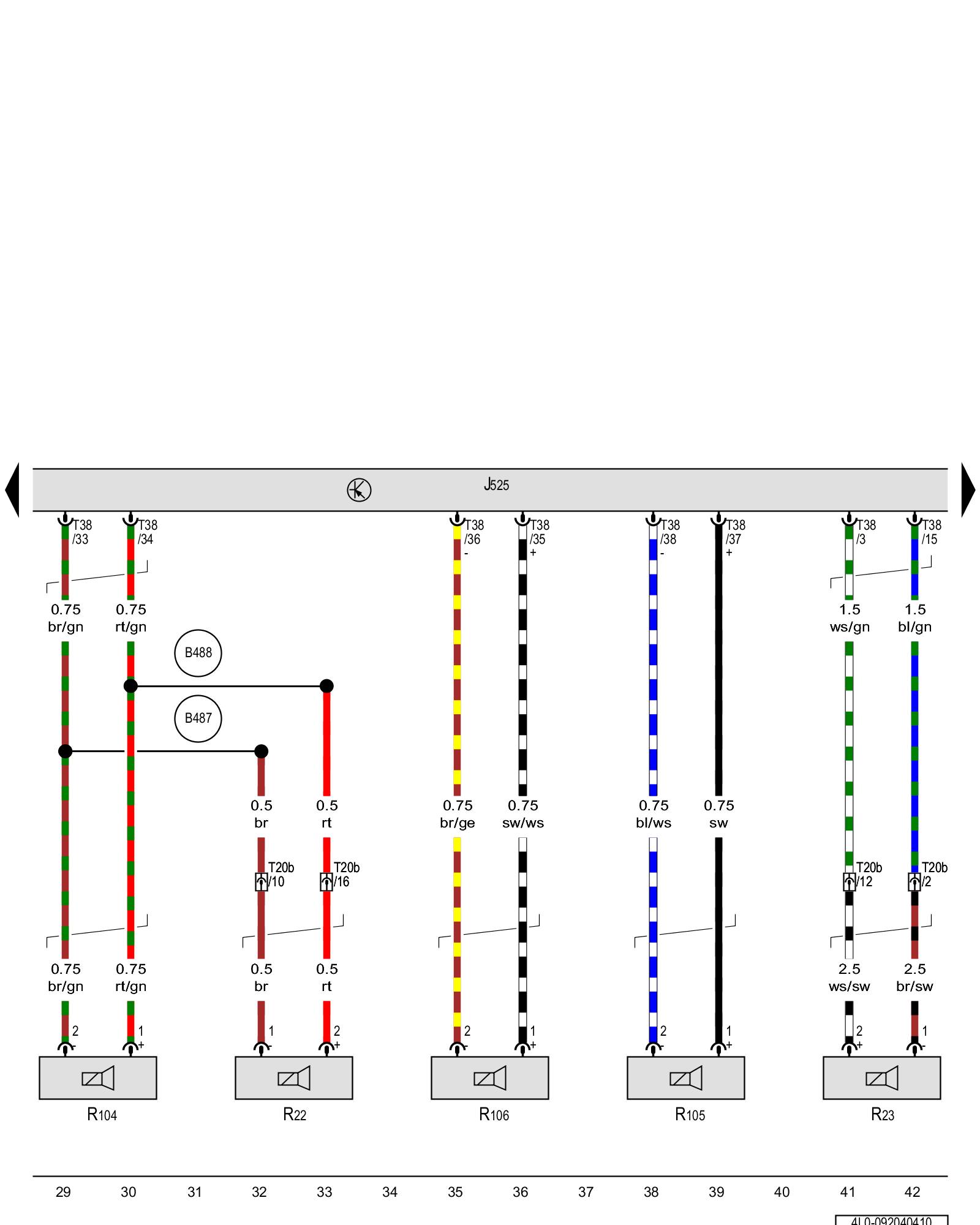

Diagram 92/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital sound system control module, Right front bass speaker, Right front midrange speaker, Left rear midrange speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Component Locations

R22 - Right front treble speaker

R23 - Right front bass speaker

R104 - Right front midrange speaker

R105 - Left rear midrange speaker

R106 - Right rear midrange speaker

T20b - 20-pin connector, on the right A-pillar

T38 - 38-pin connector

(B487) - Connection 23 (in main wiring harness)

(B488) - Connection 24 (in main wiring harness)

Previous Diagram 92/3 (Tracks 15-28)

Next Diagram 92/5 (Tracks 43-56)
