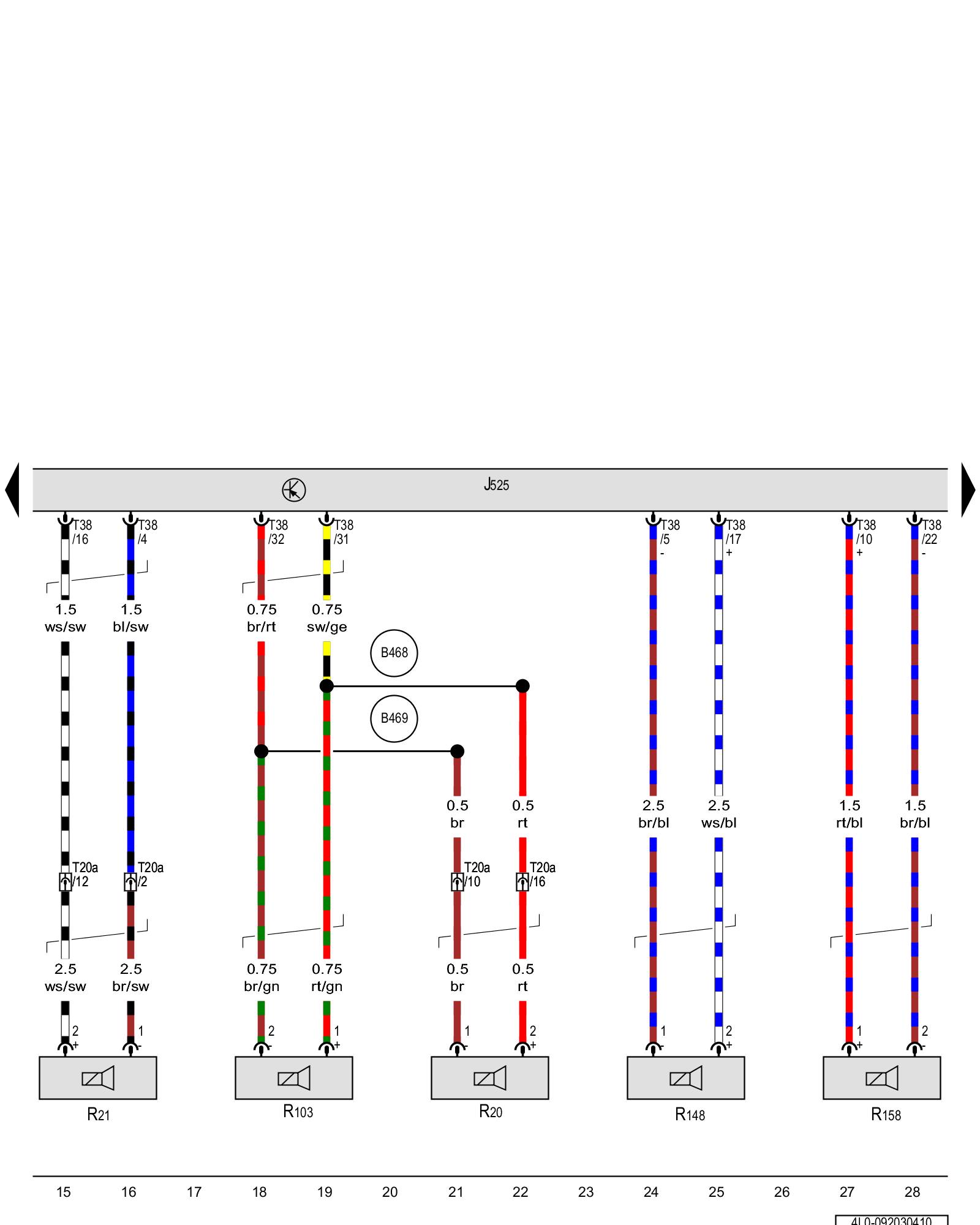

Diagram 92/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital sound system control module, Left front treble speaker, Left front bass speaker, Speaker in center, Center mid-treble speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Component Locations

R20 - Left front treble speaker

R21 - Left front bass speaker

R103 - Left front midrange speaker

R148 - Speaker in center

R158 - Center mid-treble speaker

T20a - 20-pin connector, on the left A-pillar

T38 - 38-pin connector

(B468) - Connection 4 (in main wiring harness)

(B469) - Connection 5 (in main wiring harness)
