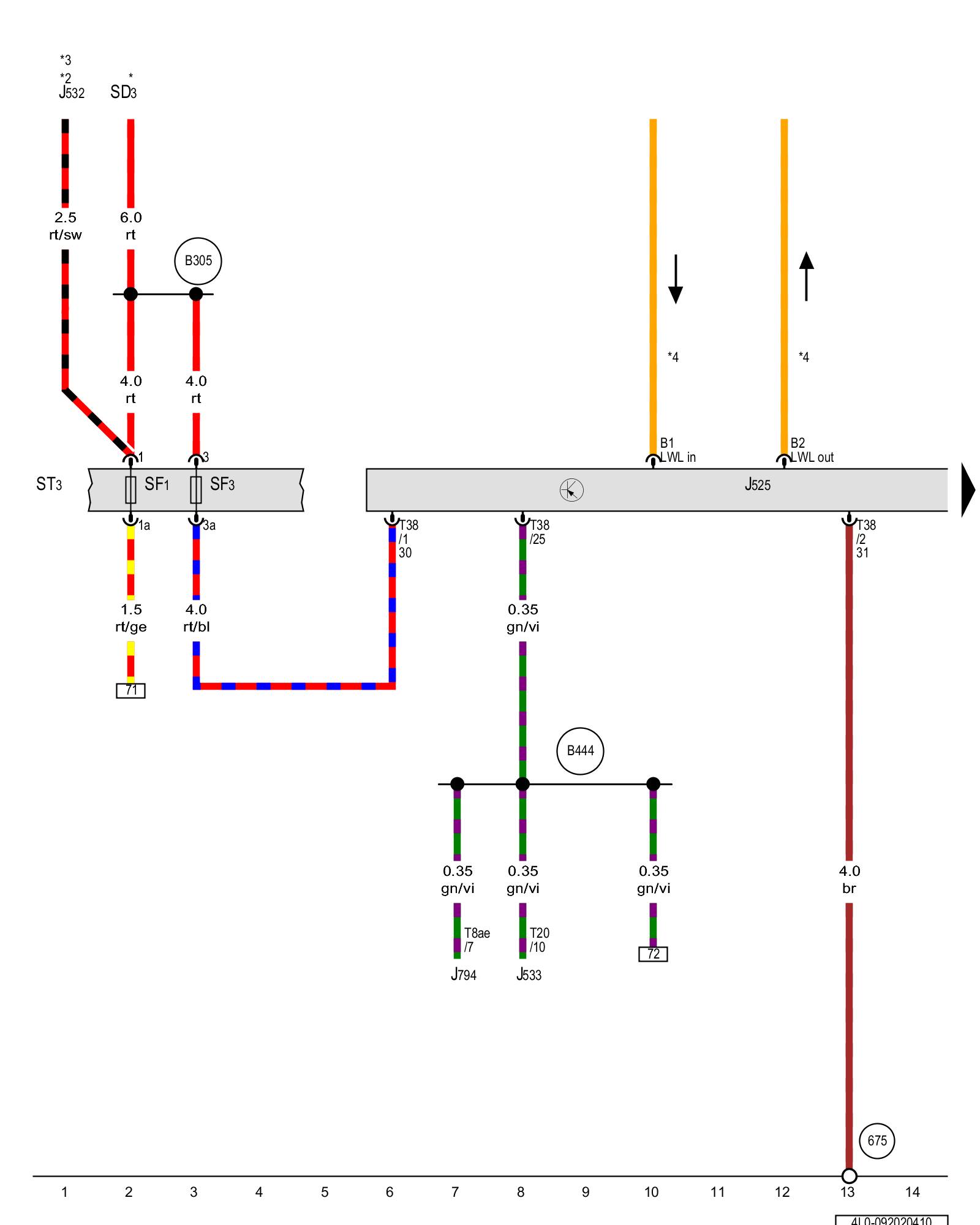

Diagram 92/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital sound system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Component Locations

J532 - Voltage stabilizer

J533 - Data bus on board diagnostic interface Overview Of Control Modules

J794 - Information electronics control module 1 Component Locations

SF1 - Fuse 1 (on fuse panel F) Overview Of Fuses

ST3 - Fuse panel 3

SF3 - Fuse 3 (on fuse panel F) Overview Of Fuses

SD3 - Fuse 3 (on fuse panel D) Overview Of Fuses

T8ae - 8-pin connector

T20 - 20-pin connector

T38 - 38-pin connector

(675) - Ground connection 2 in luggage compartment, right Locations

(B305) - Positive connection 9 (30) (in main wiring harness)

(B444) - OBD connection 1 (in main wiring harness)

* - Relay and fuse carrier under the driver seat

*2 - Only for vehicles with Stop/Start system

*3 - Refer to applicable wiring diagram

*4 - Fiber optic cable

Next Diagram 92/3 (Tracks 15-28)
