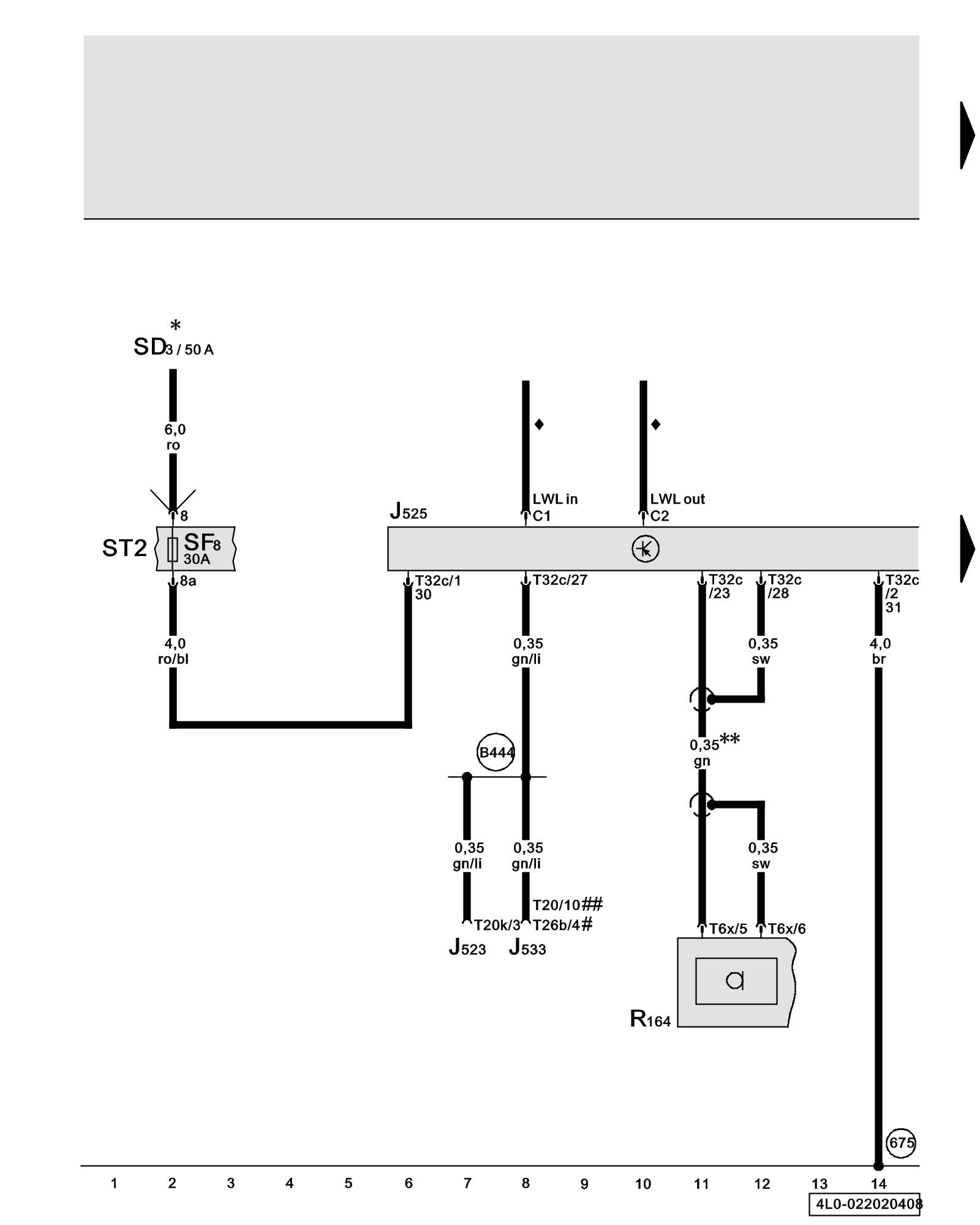

Diagram 22/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital Sound System Control Module, Microphone Unit (in front roof module), Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J523 - Front Information Display Control Head Control Module Component Locations

J525 - Digital Sound System Control Module Component Locations

J533 - Data Bus On Board Diagnostic Interface Overview Of Control Modules

R164 - Microphone Unit (in front roof module) Phone System Components Locations

SD3 - Fuse 3 (on fuse panel D) Overview Of Fuses

SF8 - Fuse 8 (on fuse panel F) Overview Of Fuses

T6x - 6-Pin Connector, blue, on microphone unit (in front roof module)

T20 - 20-Pin Connector, black, on data bus on board diagnostic interface

T20k - 20-Pin Connector, red, Connector A, on front information display control head control module

T26b - 26-Pin Connector, black, on data bus on board diagnostic interface

T32c - 32-Pin Connector, black, on digital sound system control module

(675) - Ground Connection 2 (in luggage compartment, right) Locations

(B444) - On Board Diagnostic (OBD) Connection 1 (in main wiring harness) (Ringbreak Diagnosis)

* - Relay and fuse carrier below driver's seat

** - Models with voice control

# - Through May 2008

## - from June 2008

♦ - FOC - Fibre Optic Conductor => Wiring Diagram Infotainment-Data Bus (Most-Ring)

Next Diagram 22/3 (Tracks 15-28)
