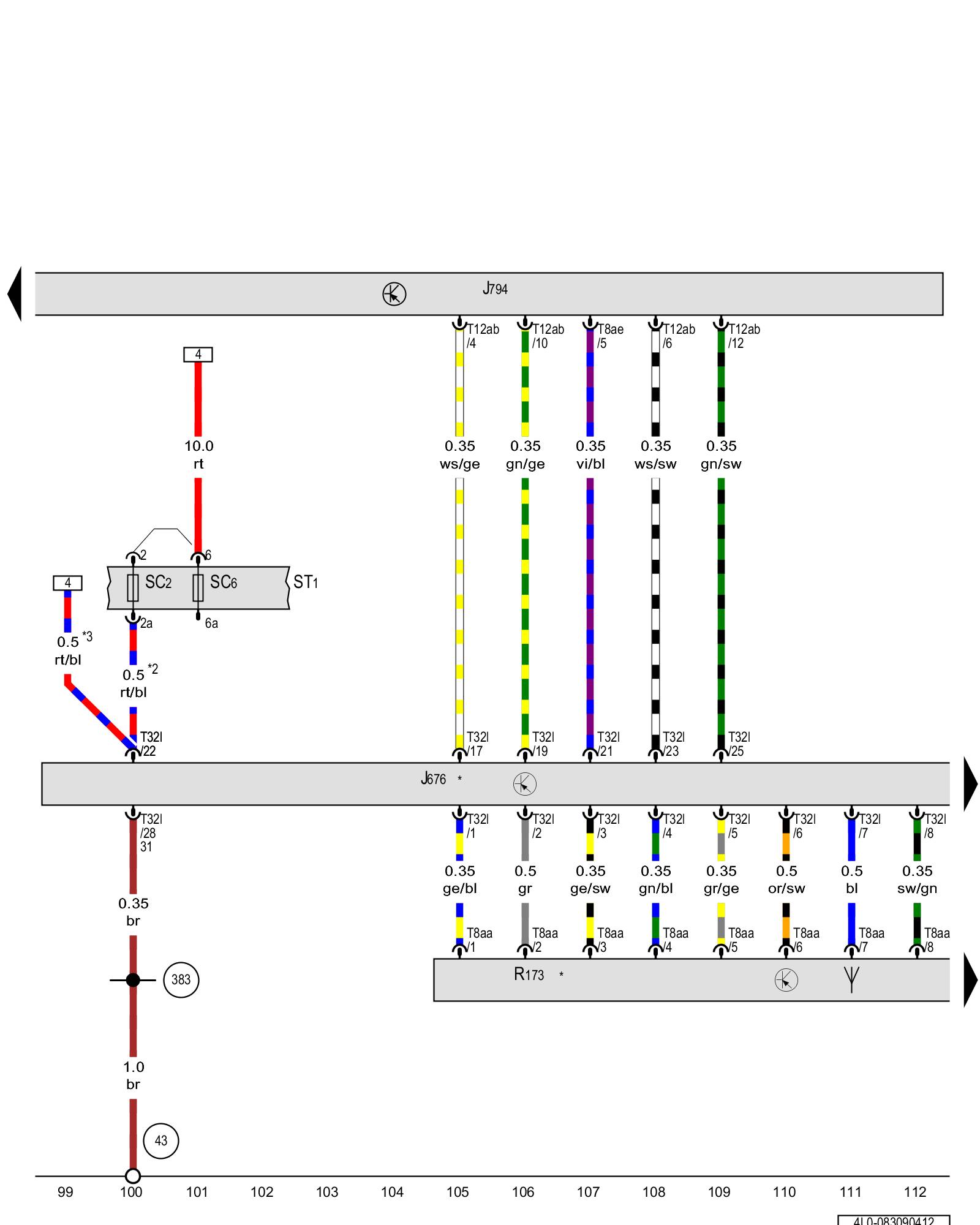

Diagram 83/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Chip card reader control module, Information electronics control module 1, Traffic data antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J676 - Chip card reader control module

J794 - Information electronics control module 1 Overview Of Control Modules Component Locations

R173 - Traffic data antenna

ST1 - Fuse panel 1

SC2 - Fuse 2 (on fuse panel C)

SC6 - Fuse 6 (on fuse panel C)

T8aa - 8-pin connector

T8ae - 8-pin connector

T12ab - 12-pin connector

T32l - 32-pin connector

(43) - Ground connection on A-pillar, lower right Locations

(383) - Ground connection 18 (in main wiring harness)

* - Only for vehicles with Japan equipment

*2 - from June 2010

*3 - Through May 2010
