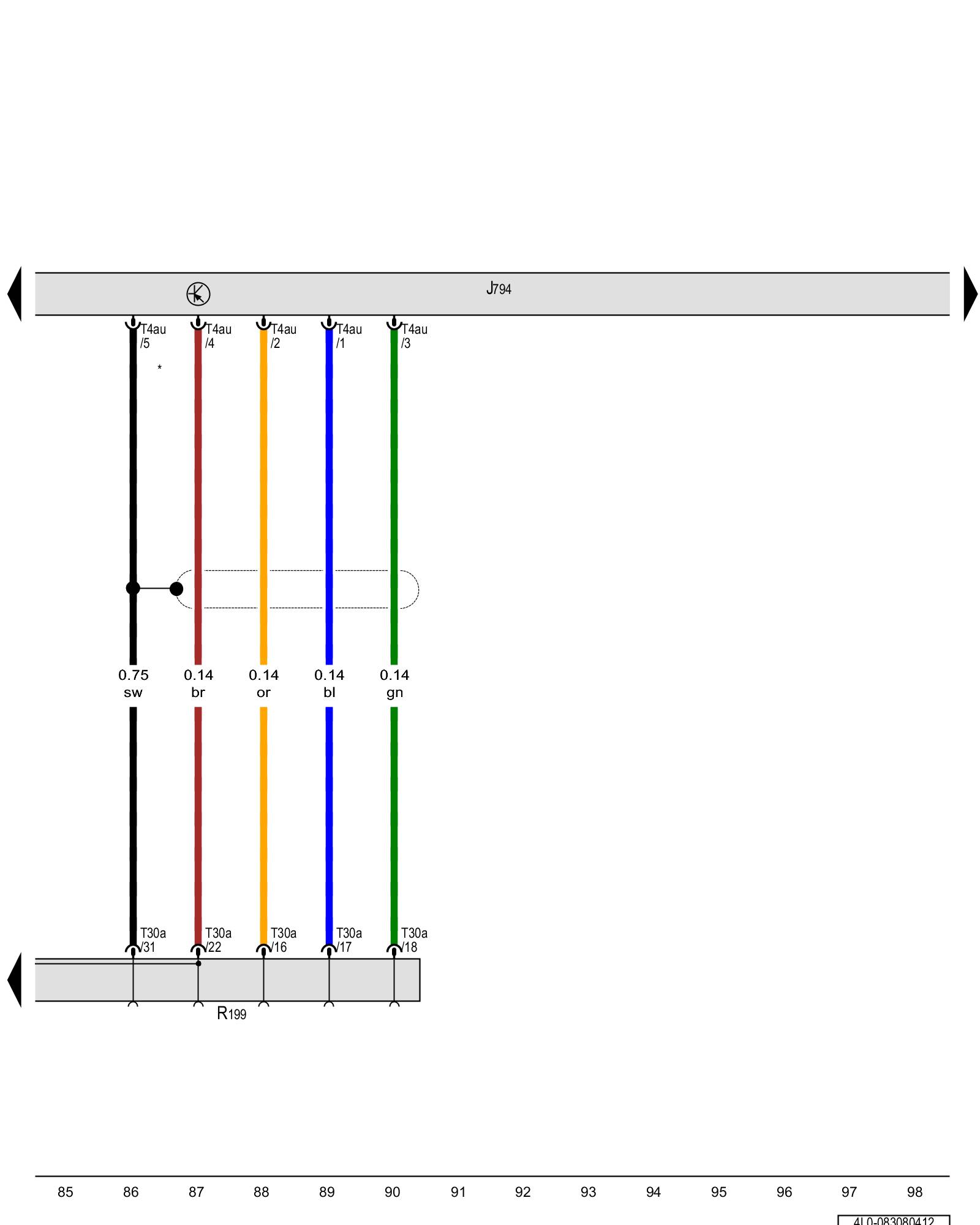

Diagram 83/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Information electronics control module 1, External audio source connection





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J794 - Information electronics control module 1 Overview Of Control Modules Component Locations

R199 - External audio source connection Component Locations

T4au - 4-pin connector

T30a - 30-pin connector

* - Ground via connector housing
