Diagram 83/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

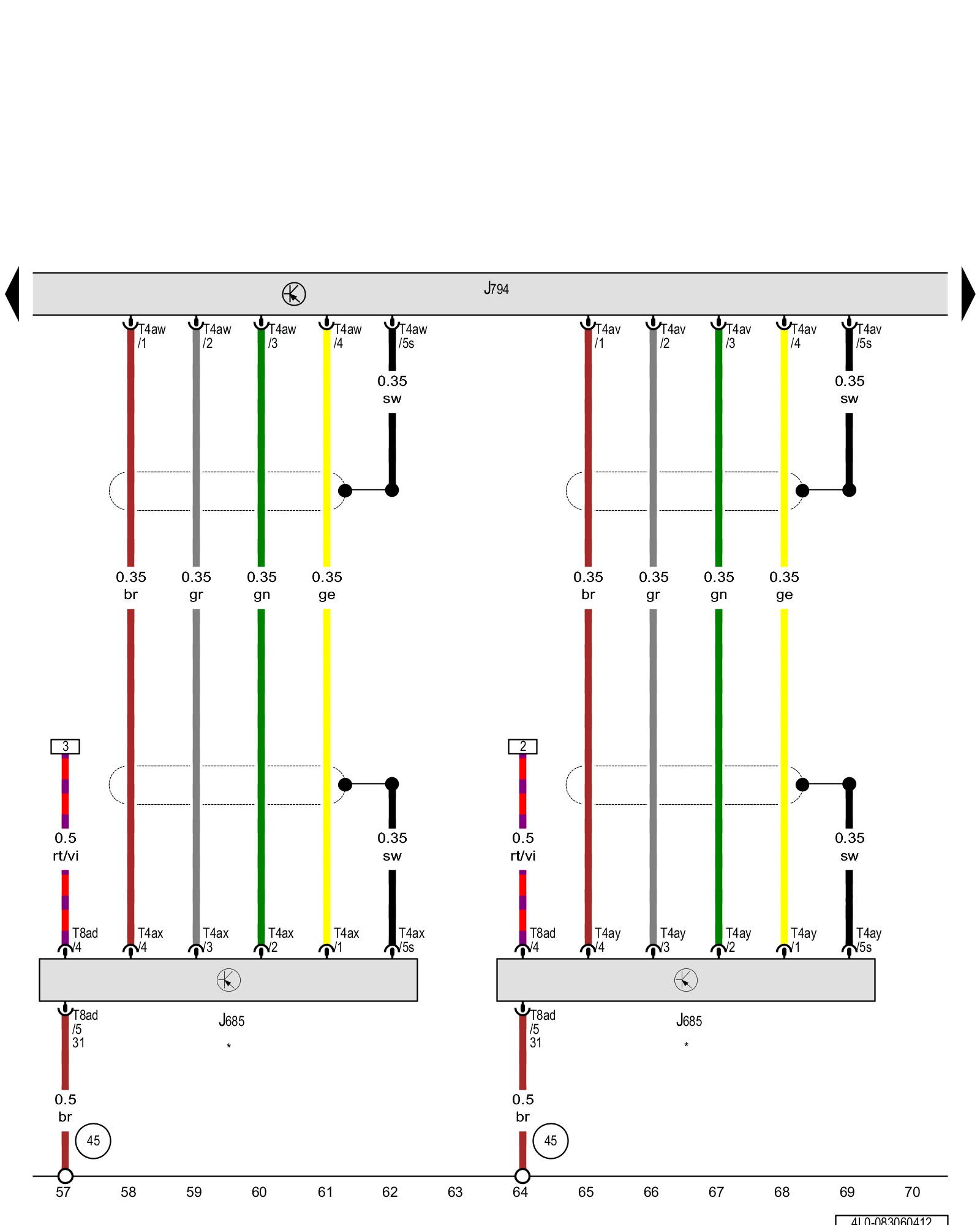

Front information display control head, Information electronics control module 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J685 - Front information display control head Component Locations

J794 - Information electronics control module 1 Overview Of Control Modules Component Locations

T4av - 4-pin connector

T4aw - 4-pin connector

T4ax - 4-pin connector, black

T4ay - 4-pin connector, white

T8ad - 8-pin connector

(45) - Ground connection behind instrument panel, center Locations

* - Depending on equipment

Previous Diagram 83/5 (Tracks 43-56)

Next Diagram 83/7 (Tracks 71-84)
