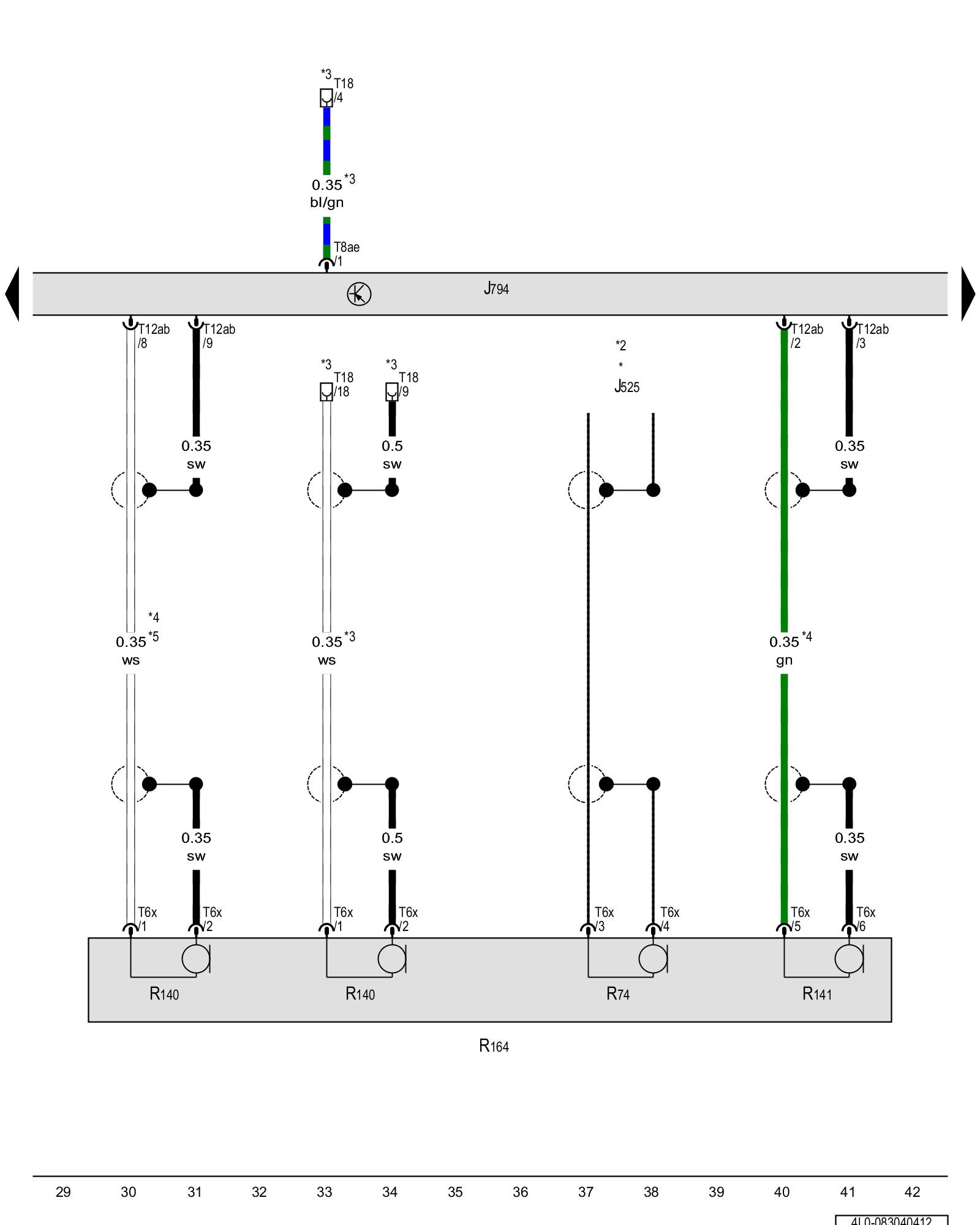

Diagram 83/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Information electronics control module 1, Microphone unit in front roof module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Component Locations

J794 - Information electronics control module 1 Overview Of Control Modules Component Locations

R74 - Interior microphone Phone System Components Locations

R140 - Left front microphone Phone System Components Locations

R141 - Right front microphone Phone System Components Locations

R164 - Microphone unit in front roof module Phone System Components Locations

T6x - 6-pin connector

T8ae - 8-pin connector

T12ab - 12-pin connector

T18 - 18-pin connector, behind the glove compartment

* - Only for vehicles with BOSE sound system

*2 - Only for vehicles with Bang & Olufsen sound system

*3 - Only with cell phone preparation without hands-free system

*4 - Only for vehicles with with a cell phone/telephone

*5 - Only for vehicles with a speech recognition system
