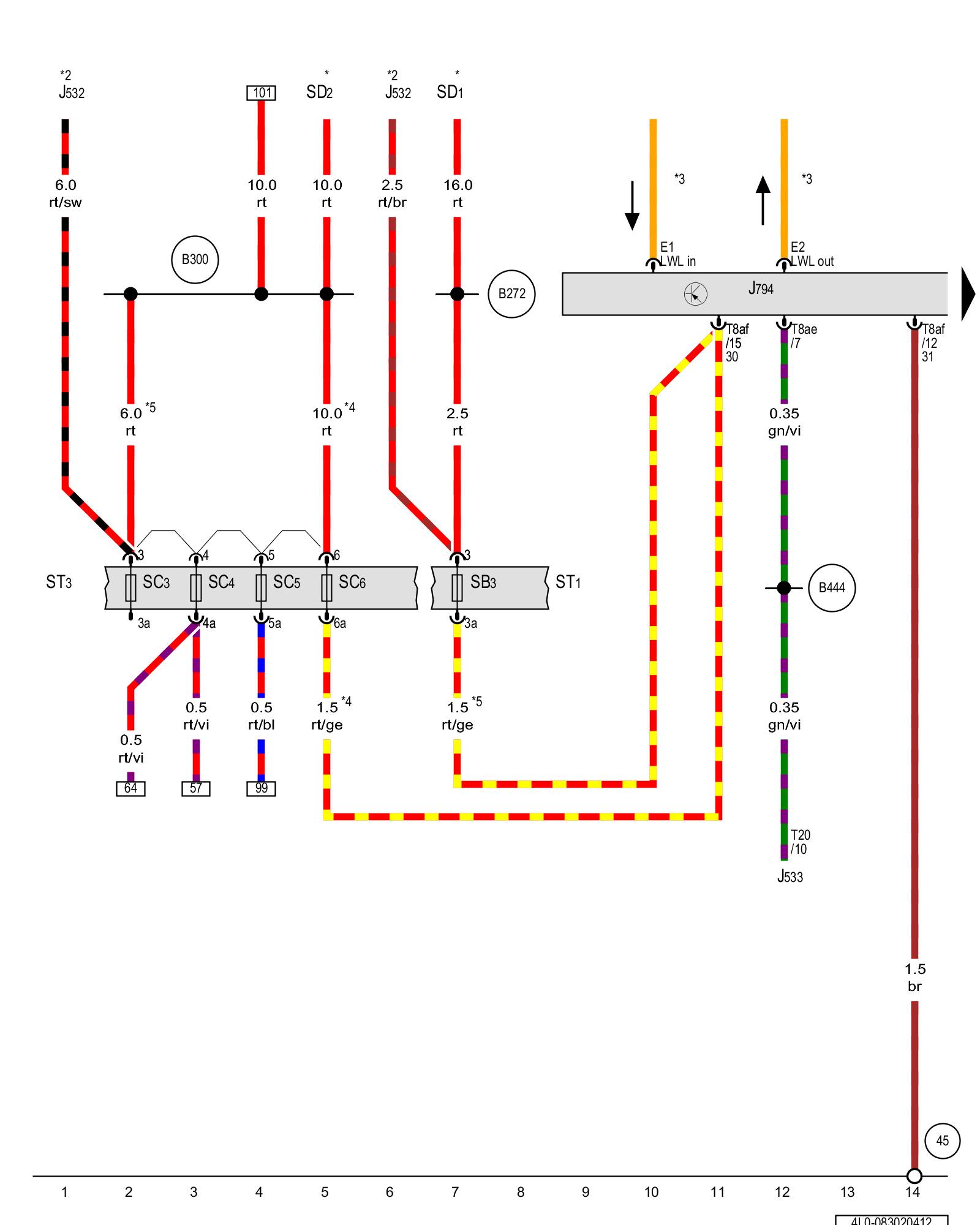

Diagram 83/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Information electronics control module 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J532 - Voltage stabilizer Overview Of Control Modules

J533 - Data bus on board diagnostic interface Overview Of Control Modules

J794 - Information electronics control module 1 Overview Of Control Modules Component Locations

SD1 - Fuse 1 (on fuse panel D) Overview Of Fuses

ST1 - Fuse panel 1

SD2 - Fuse 2 (on fuse panel D) Overview Of Fuses

SC3 - Fuse 3 (on fuse panel C)

SB3 - Fuse 3 (on fuse panel B) Overview Of Fuses

ST3 - Fuse panel 3

SC4 - Fuse 4 (on fuse panel C)

SC5 - Fuse 5 (on fuse panel C)

SC6 - Fuse 6 (on fuse panel C)

T8ae - 8-pin connector

T8af - 8-pin connector

T20 - 20-pin connector

(45) - Ground connection behind instrument panel, center Locations

(B272) - Positive connection (30) (in main wiring harness)

(B300) - Positive connection 4 (30) (in main wiring harness)

(B444) - OBD connection 1 (in main wiring harness)

* - Relay and fuse carrier under the driver seat

*2 - Only for vehicles with Start/Stop system

*3 - Fiber optic cable

*4 - Through May 2010

*5 - from June 2010

Next Diagram 83/3 (Tracks 15-28)
