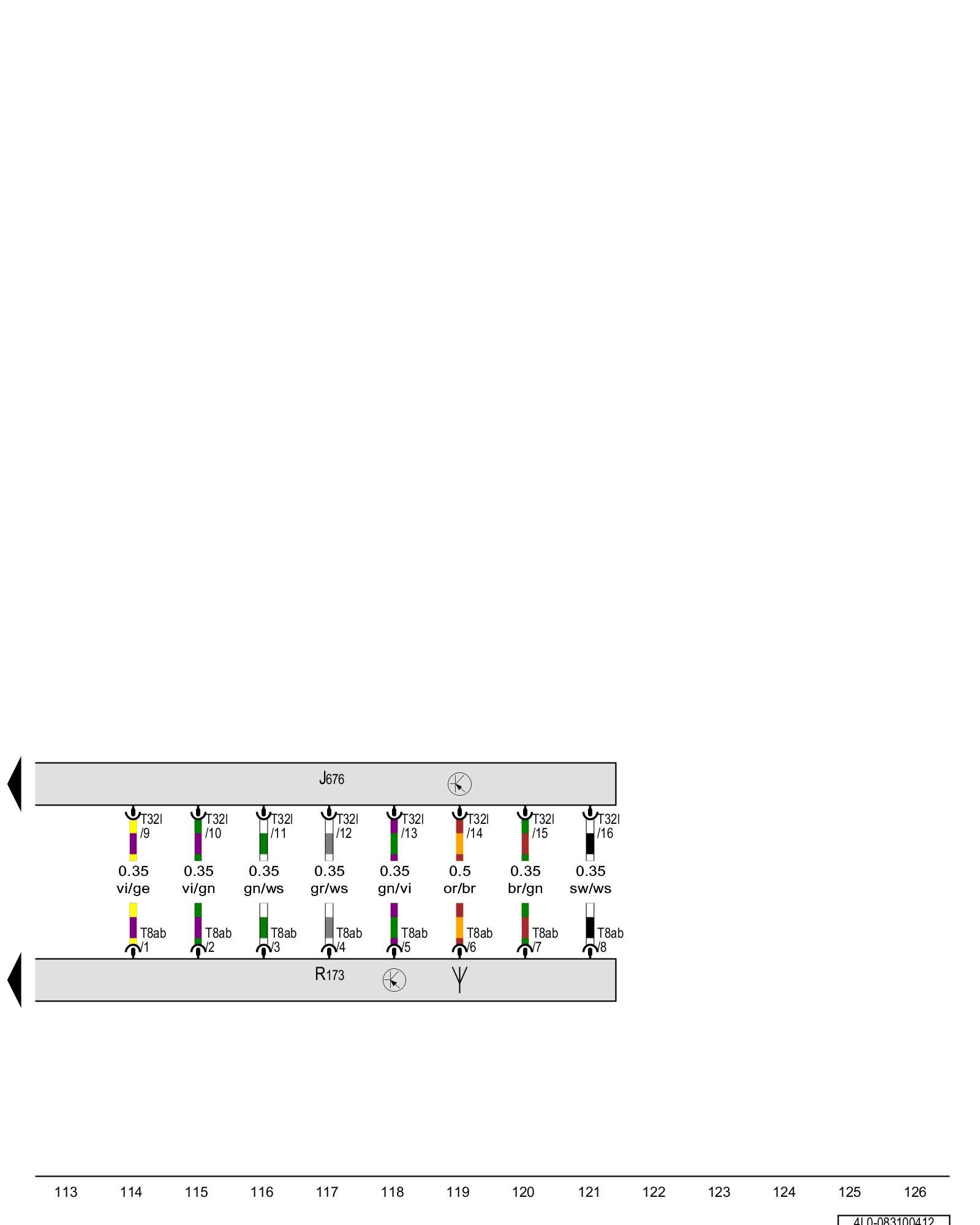

Diagram 83/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Chip card reader control module, Traffic data antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J676 - Chip card reader control module

R173 - Traffic data antenna

T8ab - 8-pin connector

T32l - 32-pin connector
