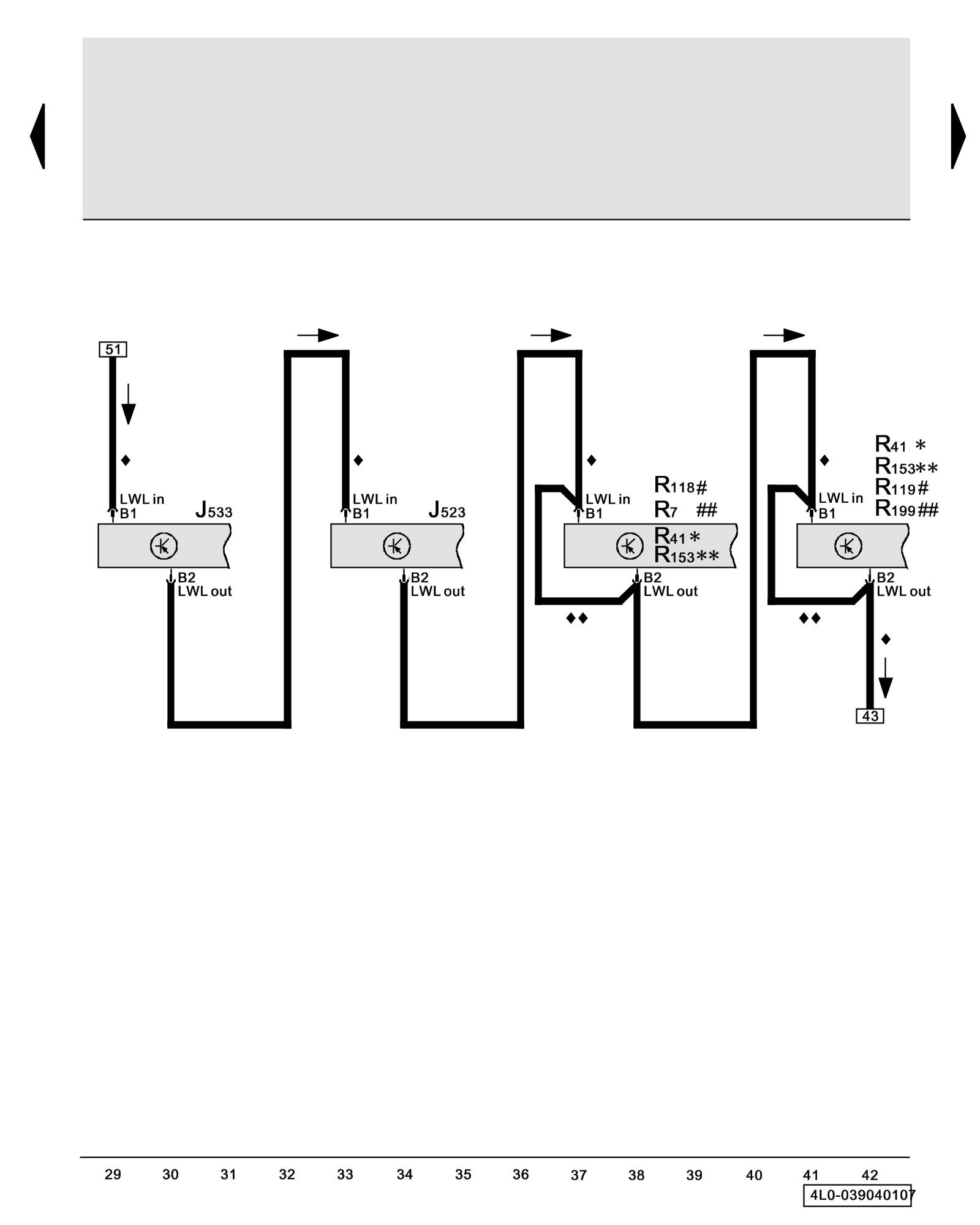

Diagram 39/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


MMI





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J523 - Front Information Display Control Head Control Module Component Locations

J533 - Data Bus On Board Diagnostic Interface Overview Of Control Modules

R7 - DVD Player

R41 - CD Changer Component Locations

R118 - Media Player, Position 1 Component Locations

R119 - Media Player, Position 2

R153 - Mini Disk Player

R199 - External Audio Source Connector Component Locations

* - Models with CD changer

** - Models with mini disk player

# - Through October 2006

## - From November 2006

♦ - FOC - Fibre Optic Conductor, see Wiring Diagram Infotainment-Data Bus (Most-Ring)

♦♦ - Not available equipment is bridged
