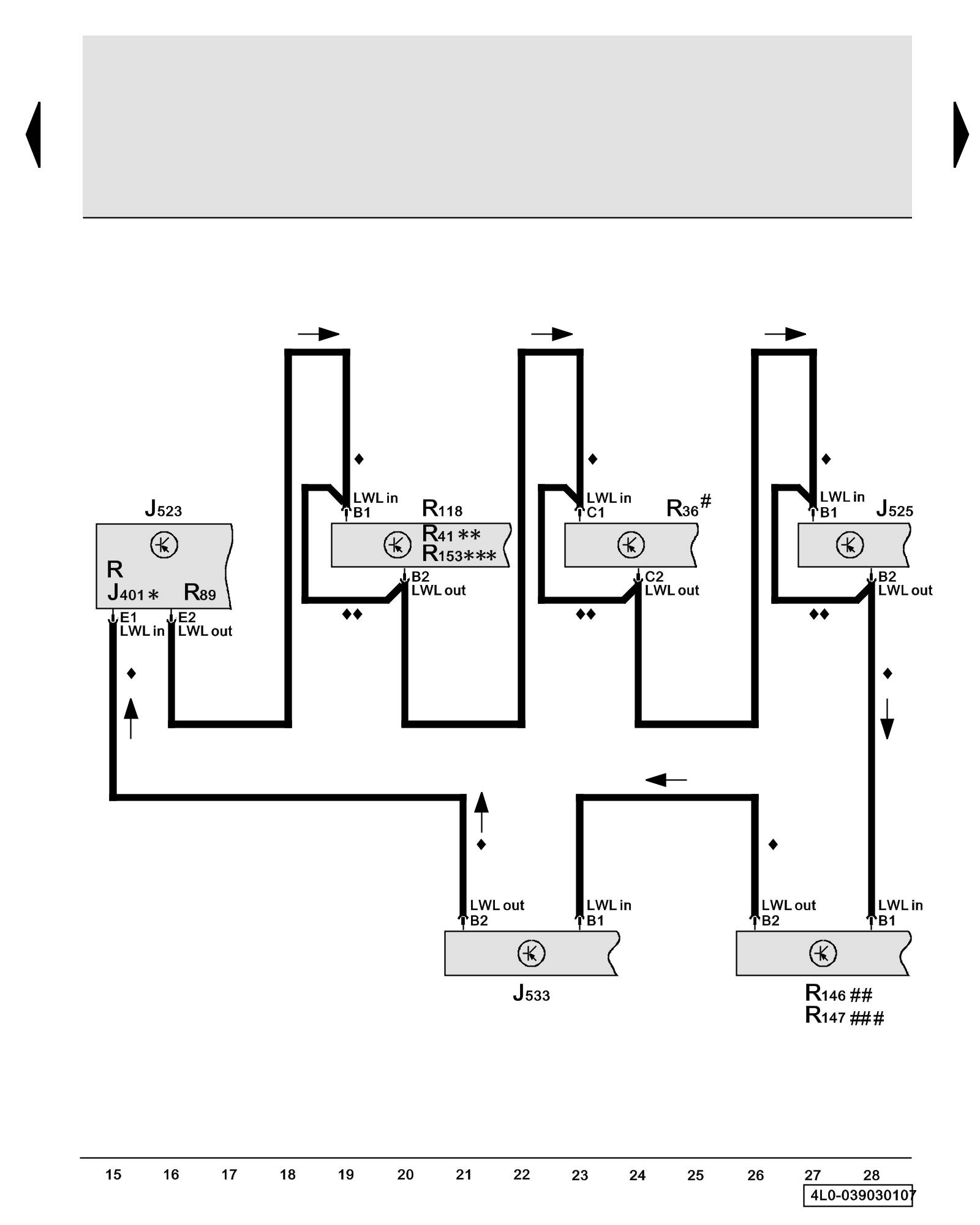

Diagram 39/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


MMI basic plus





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J401 - Navigation System Control Module with CD Drive Overview Of Control Modules

J523 - Front Information Display Control Head Control Module Component Locations

J525 - Digital Sound System Control Module Component Locations

J533 - Data Bus On Board Diagnostic Interface Overview Of Control Modules

R - Radio Overview Of Control Modules

R36 - Telephone Transceiver Overview Of Control Modules

R41 - CD Changer Component Locations

R89 - CD-Player

R118 - Media Player, Position 1 Component Locations

R146 - Satellite Radio Overview Of Control Modules

R147 - Digital Radio Overview Of Control Modules

R153 - Mini Disk Player

* - MMI basic plus Navigation

** - Models with CD changer

*** - Models with mini disk player

# - Models with cellular telephone preparation

## - Models with satellite radio

### - Models with digital radio

♦ - FOC - Fibre Optic Conductor, see Wiring Diagram Infotainment-Data Bus (Most-Ring)

♦♦ - Not available equipment is bridged
